71124S20YGI8 - Renesas Electronics

Description: The 71124 5V CMOS SRAM is organized as 128K x 8. The JEDEC centerpower/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71124 are TTL-compatible and operation is from a single 5V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71124S20YGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

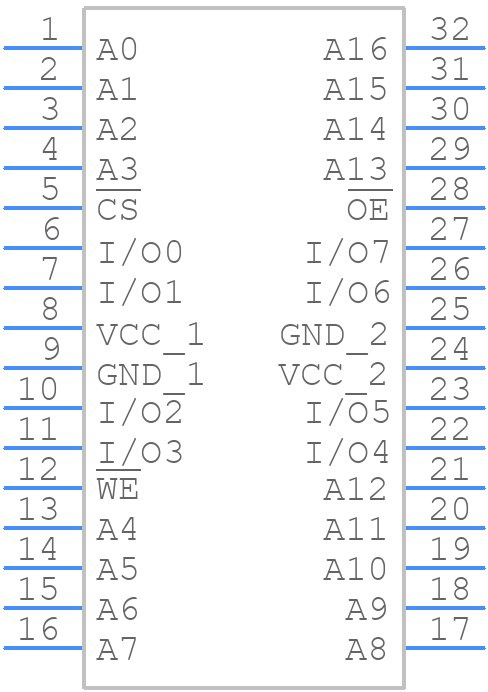

71124S20YGI8 - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71124S20YGI8 - Renesas Electronics PCB footprint - Other - Other - 71124S20YGI8-4
click to zoom
3D Models
71124S20YGI8 - Renesas Electronics - 3D model - Other - 71124S20YGI8-4
click to zoom

71124S20YGI8 Details

  • Manufacturer Part Number:

    71124S20YGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Pin Count:

    32

  • Manufacturer Package Code:

    PBG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    20 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J32

  • JESD-609 Code:

    e3

  • Length:

    20.955 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ32,.44

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.683 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm
