Part Image

713-1428 - Wago

Description: THT male header, 2-row; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 16-pole

Download 713-1428 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
713-1428 - Wago - PCB symbol
click to zoom
PCB Footprints

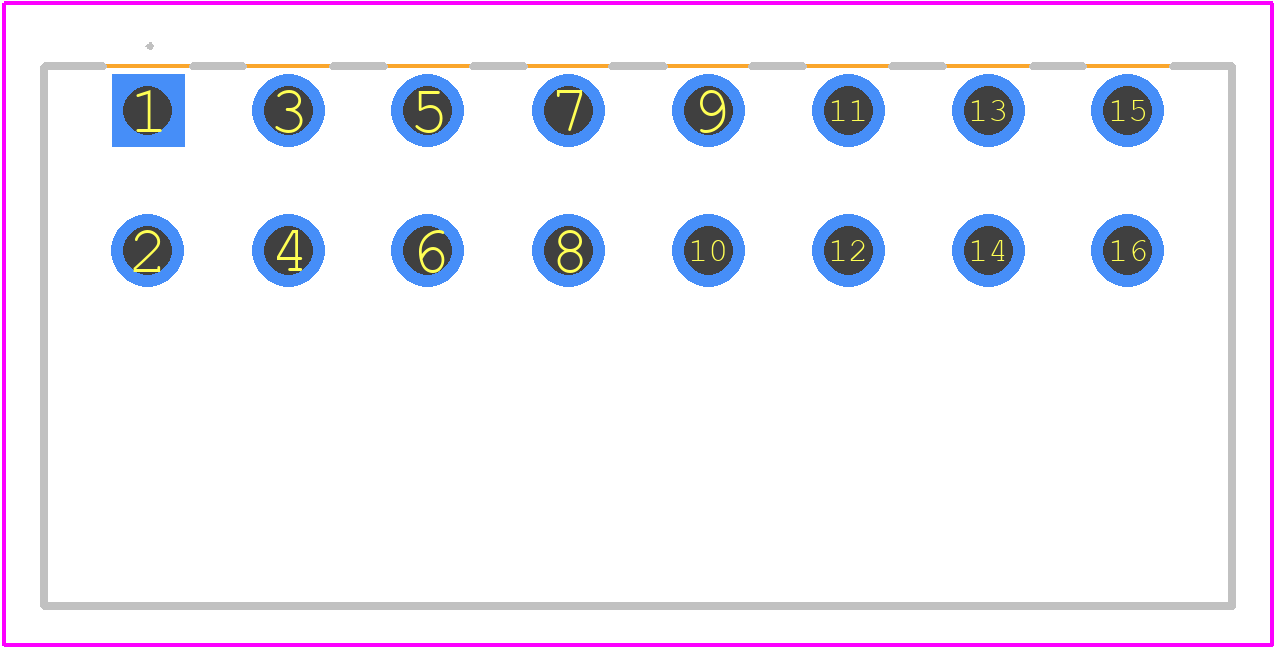

713-1428 - Wago PCB footprint - Other - Other - 713-1428-1
click to zoom
3D Models
713-1428 - Wago - 3D model - Other - 713-1428-1
click to zoom

713-1428 Details

  • Manufacturer Part Number:

    713-1428

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7

  • Additional Feature:

    STANDARD: UL 94V-0

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    CCA;CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

713-1428 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) according to WAGO's application notes.
  • Yes, the 713-1428 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 61373 Category 1, Class B.
  • Yes, the 713-1428 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 713-1428 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
  • The operating temperature range of the 713-1428 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

713-1428 Overview

Use the download button to access the 713-1428 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 713-1, or try a keyword search, such as Terminals and Terminal Blocks
