Description:The 7130 is a high-speed 1K x 8 Dual-Port Static RAM designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the 7140 "SLAVE" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535
Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable heat sink, and implement thermal monitoring and protection mechanisms, such as thermal shutdown and over-temperature protection.
The input capacitors should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using low-ESR capacitors with a voltage rating of at least 1.5 times the maximum input voltage. A minimum capacitance value of 10uF is recommended, but the actual value may need to be adjusted based on the specific application.
To optimize the output filter design, Renesas recommends using a combination of capacitors and inductors with low ESR and ESL. The output filter should be designed to provide a minimum attenuation of 40dB at the switching frequency and its harmonics. Additionally, the output voltage ripple should be limited to 1% of the nominal output voltage.
The bootstrap capacitor should be selected based on the specific application requirements, such as voltage rating, capacitance value, and ESR. Renesas recommends using a capacitor with a voltage rating of at least 1.5 times the maximum input voltage and a capacitance value of 10nF to 100nF. The ESR should be as low as possible to minimize voltage drops.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7130LA100PDG Overview

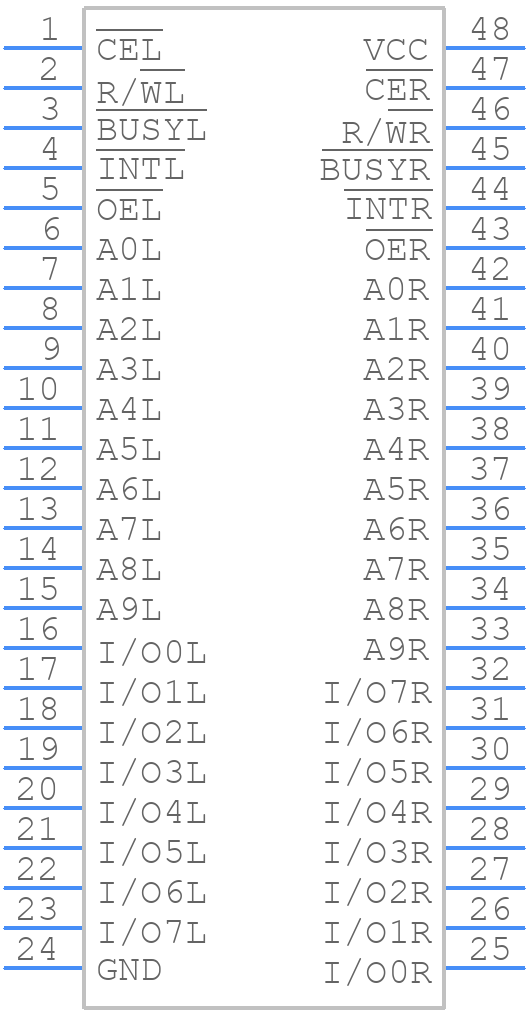

Use the download button to access the 7130LA100PDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7130L,
or try a keyword search, such as SRAMs
