7130LA55PDGI - Renesas Electronics

Description: The 7130 is a high-speed 1K x 8 Dual-Port Static RAM designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the 7140 "SLAVE" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535

Download 7130LA55PDGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

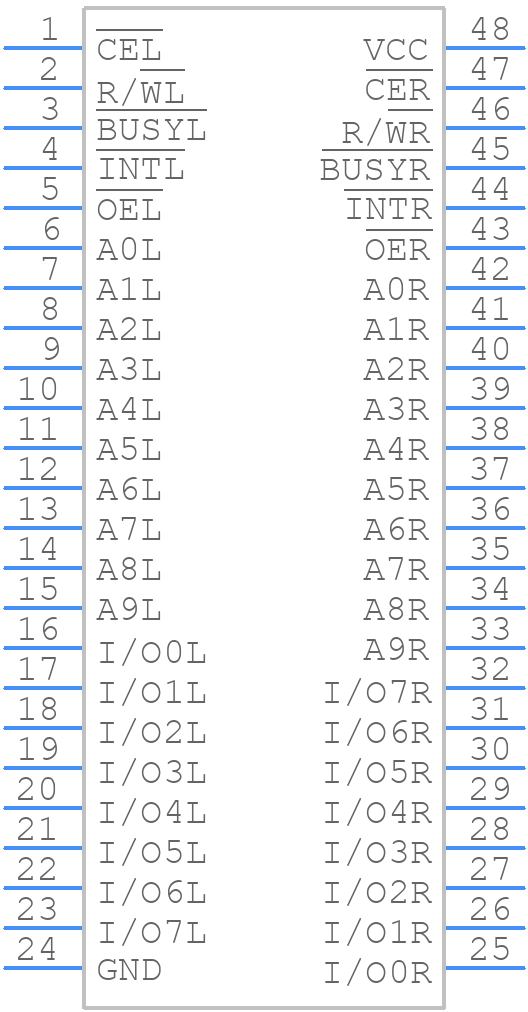

7130LA55PDGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

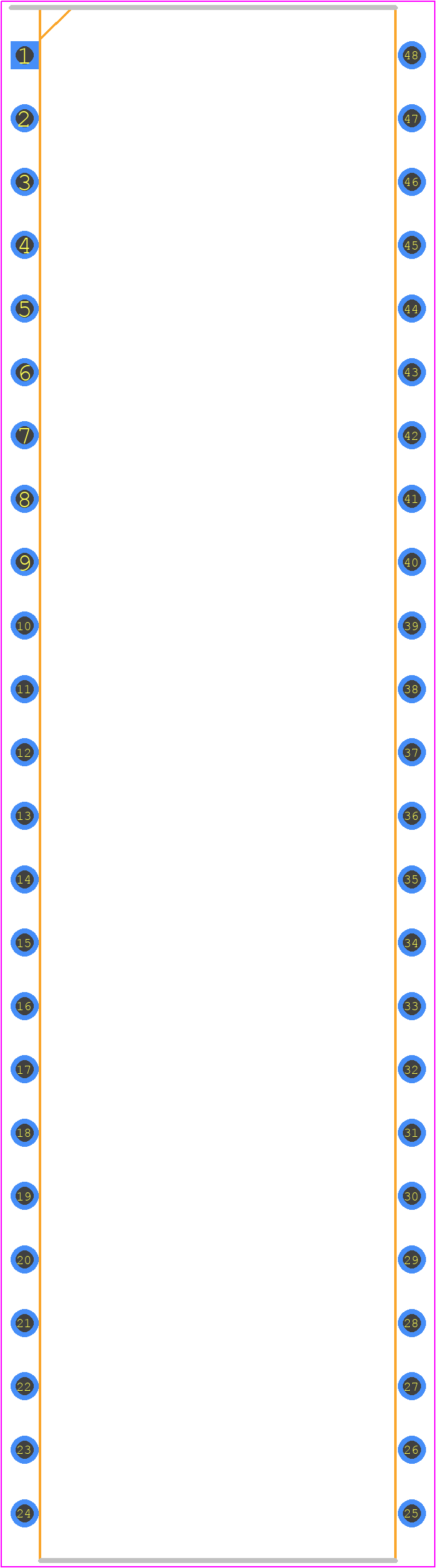

7130LA55PDGI - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 48-pin Plastic DIP (P48)
click to zoom
3D Models
7130LA55PDGI - Renesas Electronics - 3D model - Dual-In-Line Packages - 48-pin Plastic DIP (P48)
click to zoom

7130LA55PDGI Details

  • Manufacturer Part Number:

    7130LA55PDGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PDIP

  • Pin Count:

    48

  • Manufacturer Package Code:

    PDG48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    55 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDIP-T48

  • JESD-609 Code:

    e3

  • Length:

    61.849 mm

  • Memory Density:

    8192 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    1KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP48,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Standby Current-Max:

    0.004 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.14 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

7130LA55PDGI Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-114) which includes thermal vias, thermal pads, and heat sink recommendations to ensure optimal thermal performance.
  • Renesas recommends using an external overcurrent protection circuit, such as a current sense resistor and a comparator, to detect overcurrent conditions. The datasheet provides guidelines for selecting the current sense resistor value.
  • Although the datasheet doesn't specify a maximum voltage for the EN pin, Renesas recommends keeping it within the VCC voltage range (3.3V or 5V) to ensure proper operation and prevent damage to the device.
  • The 7130LA55PDGI is rated for operation up to 125°C, but Renesas recommends derating the output current and voltage to ensure reliable operation in high-temperature environments. Consult the datasheet and application notes for specific guidelines.
  • Renesas provides a troubleshooting guide in their application note (APL-AN-115) which covers common issues, such as output voltage regulation, overcurrent protection, and thermal shutdown. It also provides guidance on using oscilloscopes and other tools to diagnose problems.
