7130SA55CB - Renesas Electronics

Description: The 7130 is a high-speed 1K x 8 Dual-Port Static RAM designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the 7140 "SLAVE" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535

Download 7130SA55CB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

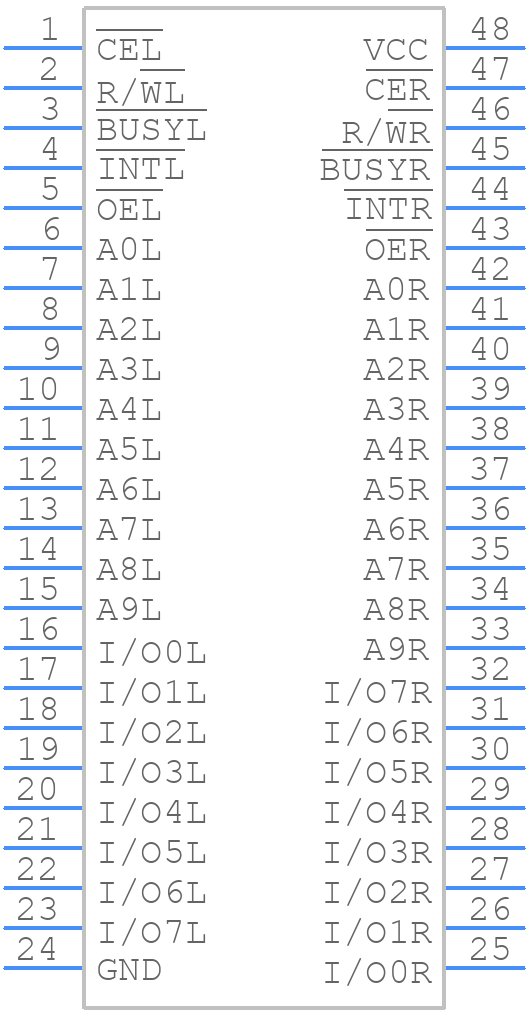

7130SA55CB - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

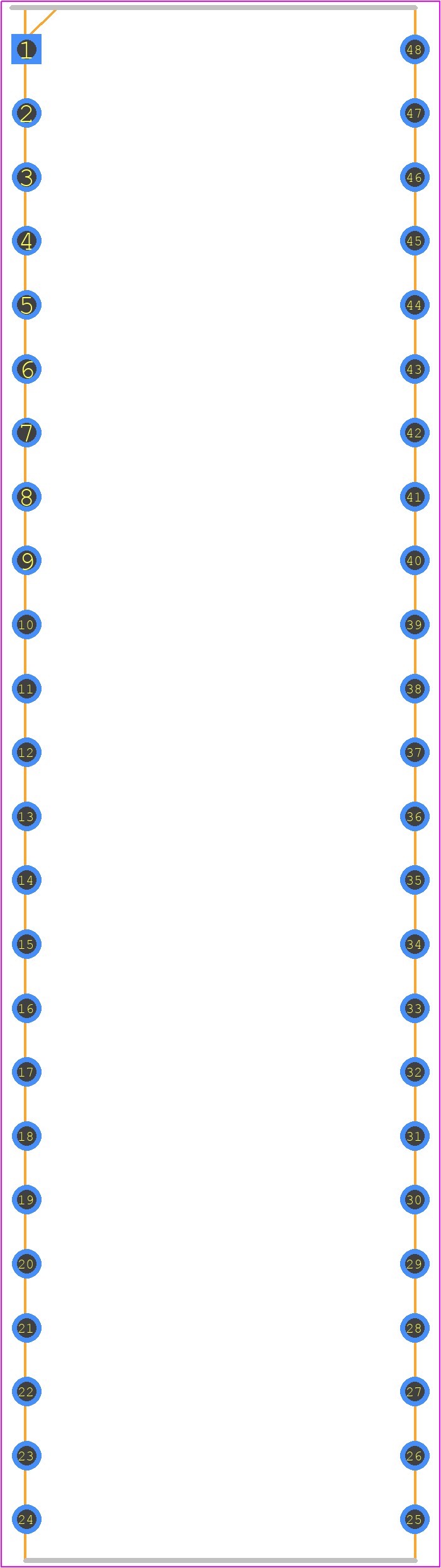

7130SA55CB - Renesas Electronics PCB footprint - Ceramic Dual-In-Line Packages - Ceramic Dual-In-Line Packages - SB48
click to zoom

7130SA55CB Details

  • Manufacturer Part Number:

    7130SA55CB

  • Brand Name:

    Renesas

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SB

  • Pin Count:

    48

  • Manufacturer Package Code:

    SB48

  • ECCN Code:

    3A001.A.2.C

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    55 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-CDIP-T48

  • JESD-609 Code:

    e0

  • Length:

    60.96 mm

  • Memory Density:

    8192 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    48

  • Number of Words:

    1024 words

  • Number of Words Code:

    1000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Organization:

    1KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP48,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    240

  • Qualification Status:

    Not Qualified

  • Screening Level:

    MIL-PRF-38535

  • Seated Height-Max:

    4.826 mm

  • Standby Current-Max:

    0.03 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.19 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    15.24 mm

7130SA55CB Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-7130-001) which includes thermal vias, heat sink design, and component placement guidelines to ensure optimal thermal performance.
  • The 7130SA55CB has a built-in overcurrent protection feature, but it's recommended to add an external overcurrent protection circuit to ensure reliable operation. Renesas provides a reference design in their application note (APL-AN-7130-002) that includes a circuit diagram and component selection guidelines.
  • Although the datasheet specifies a recommended input voltage range, Renesas recommends keeping the input voltage deviation within ±10% of the nominal voltage to ensure reliable operation and prevent damage to the device.
  • Renesas provides a troubleshooting guide in their application note (APL-AN-7130-003) that includes a step-by-step procedure for identifying and resolving common issues, such as output voltage errors, overcurrent conditions, and thermal shutdowns.
  • Renesas recommends using a TVS (Transient Voltage Suppressor) diode or a dedicated ESD protection IC to protect the 7130SA55CB from electrostatic discharge. The recommended ESD protection method is described in the Renesas application note (APL-AN-7130-004).

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7130SA55CB Overview

Use the download button to access the 7130SA55CB schematic symbol and PCB footprint.
