Description:The 7132 is a high-speed 2K x 8 Dual-Port Static RAM designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the 7142 "SLAVE" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535
Renesas provides a recommended PCB layout guide in their application note (AN1844) for the 7132LA100PDG, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a heat sink or a thermal shield to reduce the junction temperature.
Using a different input capacitor value than recommended may affect the stability and performance of the regulator. A larger capacitor value can improve transient response, but may also increase the risk of oscillation. A smaller capacitor value can reduce the risk of oscillation, but may compromise transient response. It's essential to evaluate the impact of capacitor value on the specific application.
To troubleshoot output voltage instability or oscillation issues, check the input voltage, output load, and PCB layout for any anomalies. Ensure that the input capacitor and output capacitor values meet the recommended specifications. Also, verify that the regulator is properly decoupled from the input and output, and that there are no noise or interference sources affecting the regulator's operation.
While the datasheet specifies a minimum input voltage of 2.7V, Renesas recommends an input voltage range of 3.0V to 5.5V for optimal performance and to ensure that the regulator operates within its specified parameters.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7132LA100PDG Overview

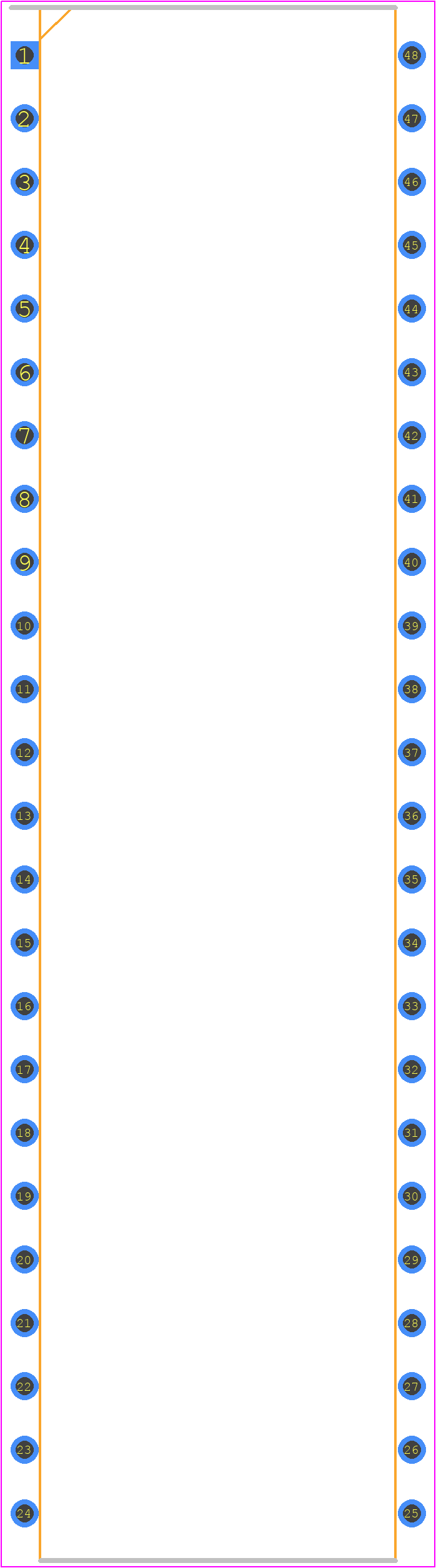

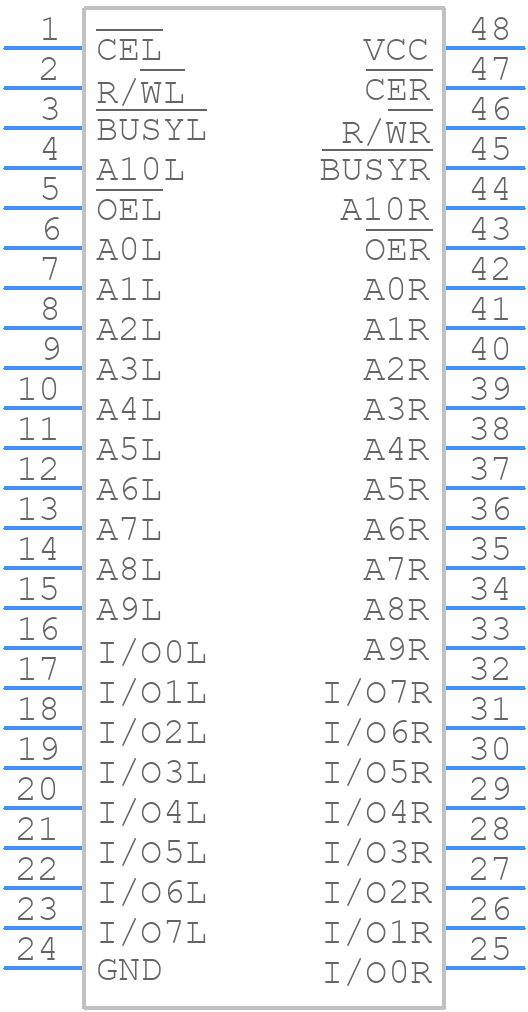

Use the download button to access the 7132LA100PDG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7132L,
or try a keyword search, such as SRAMs
