7132SA55P - Renesas Electronics

Description: The 7132 is a high-speed 2K x 8 Dual-Port Static RAM designed to be used as a stand-alone 8-bit Dual-Port RAM or as a "MASTER" Dual-Port RAM together with the 7142 "SLAVE" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535

Download 7132SA55P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 7132SA55P model

Email notifications will be applied after download.

Send part feedback

Symbol

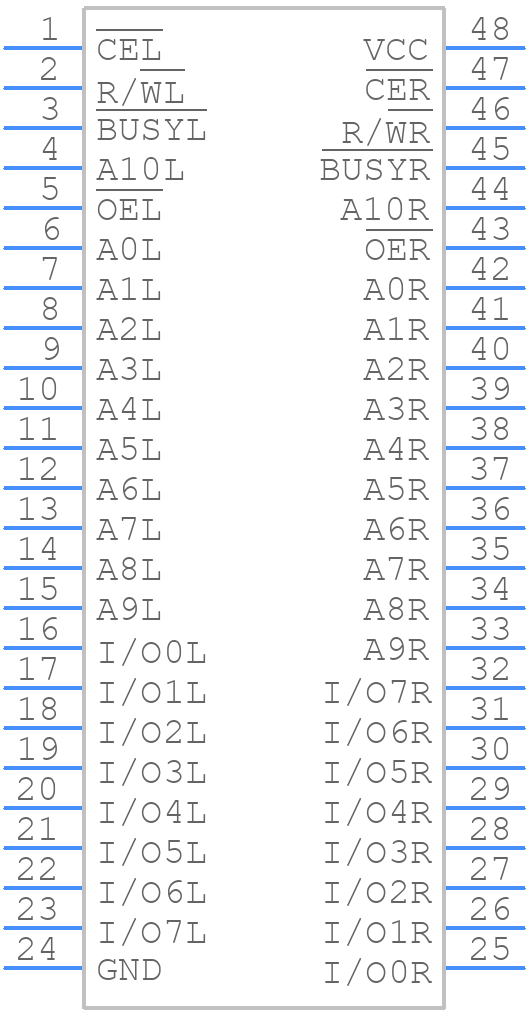

7132SA55P - Renesas Electronics - PCB symbol

PCB Footprints

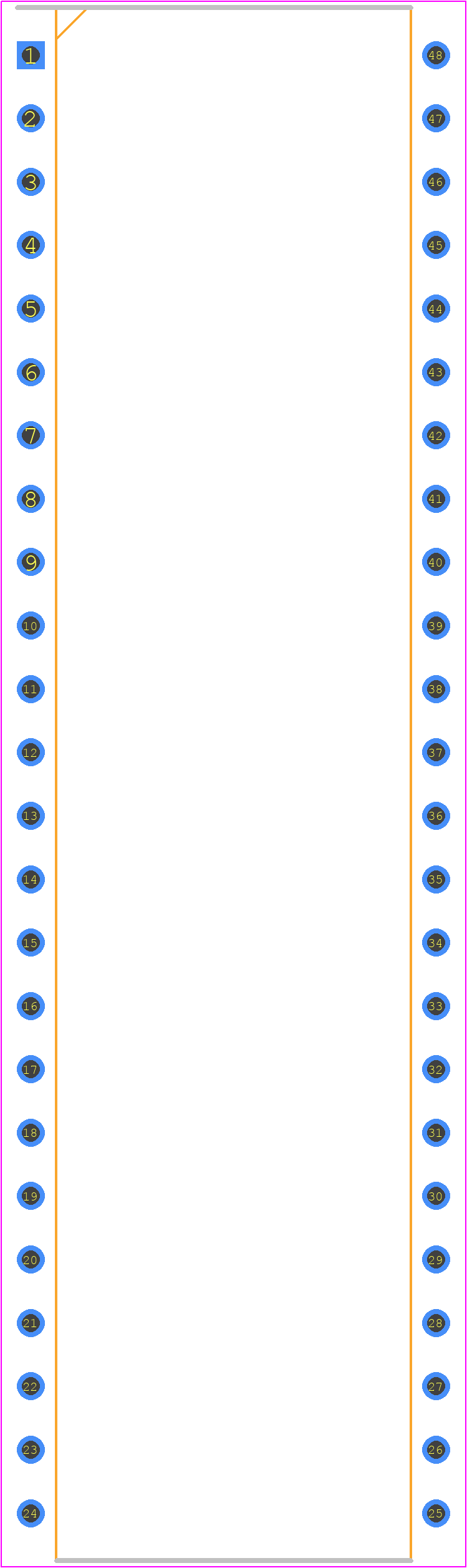

7132SA55P - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 48-pin Plastic DIP*

3D Models

7132SA55P - Renesas Electronics - 3D model - Dual-In-Line Packages - 48-pin Plastic DIP*

Datasheet Download Datasheet
Stock & Prices Price & Stock for 7132SA55P
Part Number 7132SA55P
Manufacturer Renesas Electronics
Pin Count 48
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 48-pin Plastic DIP*
Released Date Sep 1, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

7132SA55P Details

Manufacturer Part Number:
7132SA55P
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

7132SA55P Overview

Use the download button to access the 7132SA55P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7132S, or try a keyword search, such as SRAMs
