7133LA25JGI - Renesas Electronics

7133LA25JGI Details

• Manufacturer Part Number:

  7133LA25JGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

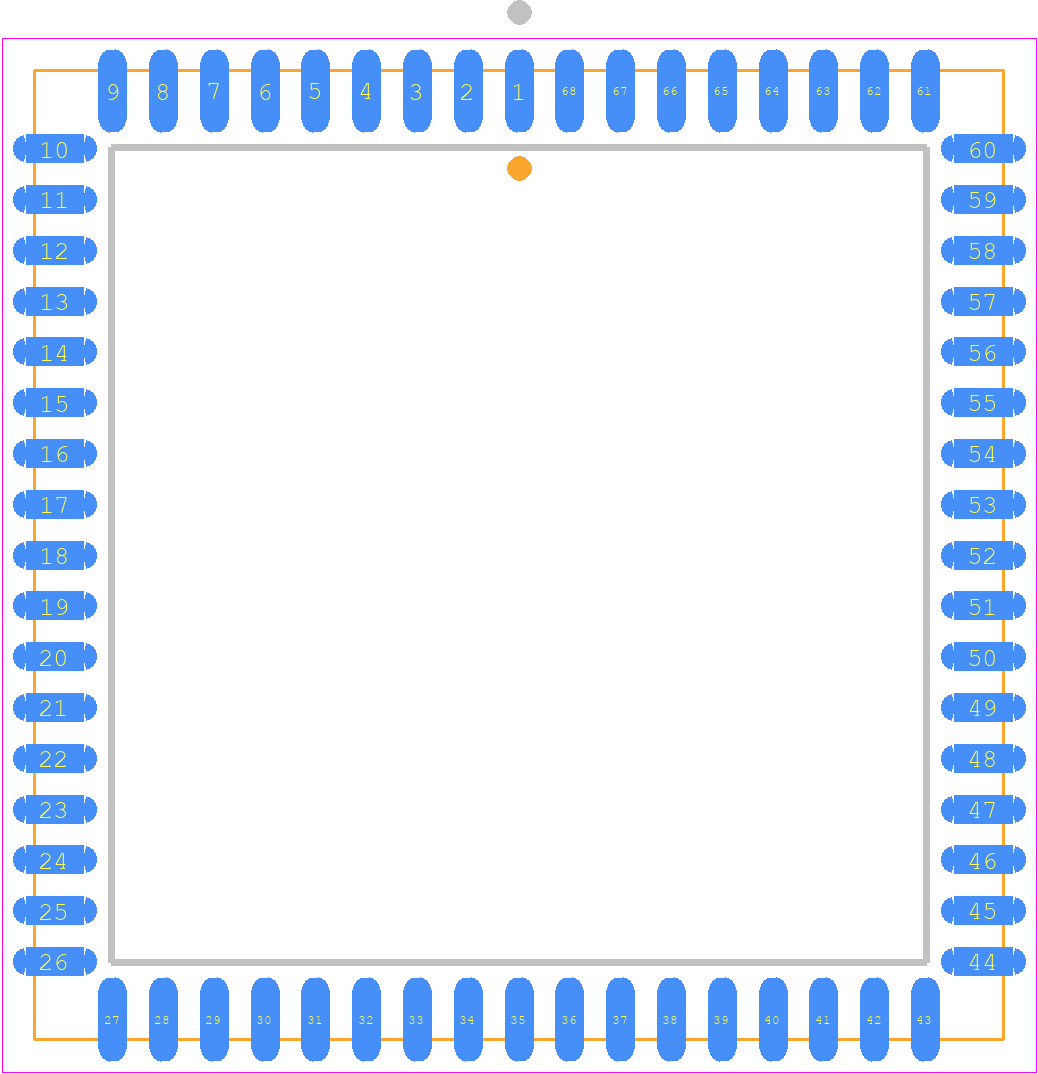

• Part Package Code:

  PLCC

• Pin Count:

  68

• Manufacturer Package Code:

  PLG68

• Country Of Origin:

  Philippines, Taiwan, Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  18 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  4

• Access Time-Max:

  25 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  S-PQCC-J68

• JESD-609 Code:

  e3

• Length:

  24.2062 mm

• Memory Density:

  32768 bit

• Memory IC Type:

  MULTI-PORT SRAM

• Memory Width:

  16

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Ports:

  2

• Number of Terminals:

  68

• Number of Words:

  2048 words

• Number of Words Code:

  2000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  2KX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  QCCJ

• Package Equivalence Code:

  LDCC68,1.0SQ

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  4.572 mm

• Standby Current-Max:

  0.004 A

• Standby Voltage-Min:

  2 V

• Supply Current-Max:

  0.3 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  24.2062 mm
