71342LA25JGI8 - Renesas Electronics

Description: The 71342 is a high-speed 4K x 8 Dual-Port Static RAM containing a fully independent semaphore logic block to assist in arbitrating between ports. This block contains unassigned flags which can be accessed by either side, however, only one side can control the flag at any time. An automatic power down feature, controlled by CE and SEM, permits the on-chip circuitry of each port to enter a very low standby power mode (both CE and SEM HIGH).

Download 71342LA25JGI8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

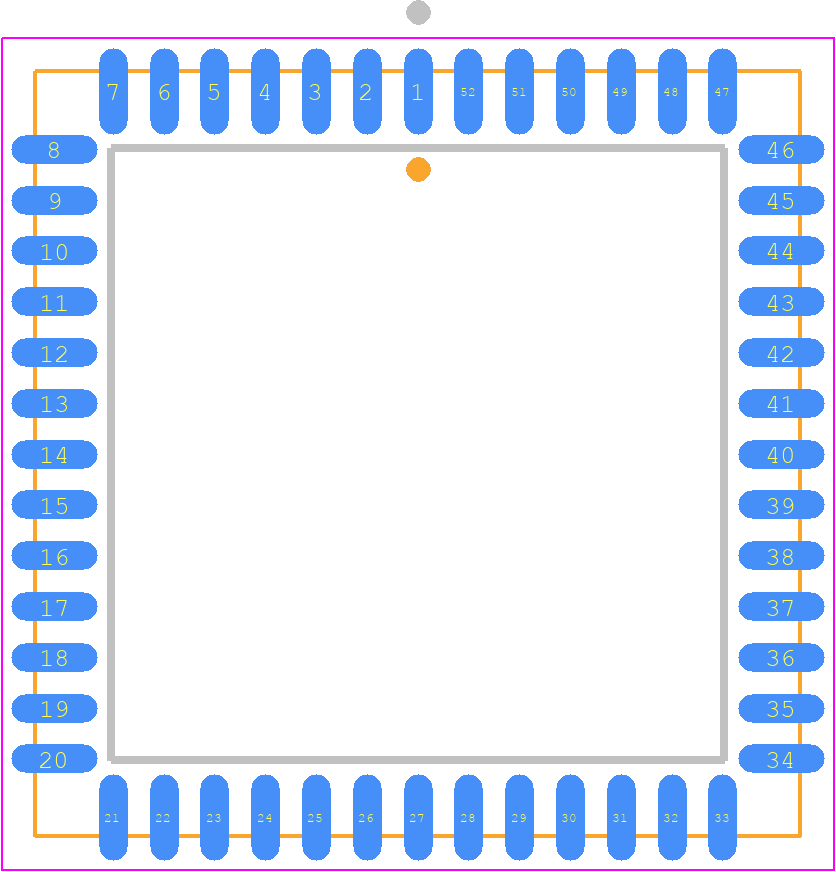

71342LA25JGI8 - Renesas Electronics PCB footprint - Plastic Leaded Chip Carrier - Plastic Leaded Chip Carrier - PLG52-+-__
click to zoom
3D Models
71342LA25JGI8 - Renesas Electronics  - 3D model - Plastic Leaded Chip Carrier - PLG52-+-__
click to zoom

71342LA25JGI8 Details

  • Manufacturer Part Number:

    71342LA25JGI8

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PLCC

  • Pin Count:

    52

  • Manufacturer Package Code:

    PLG52

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    111 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    25 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PQCC-J52

  • JESD-609 Code:

    e3

  • Memory Density:

    32768 bit

  • Memory IC Type:

    MULTI-PORT SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    2

  • Number of Terminals:

    52

  • Number of Words:

    4096 words

  • Number of Words Code:

    4000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4KX8

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCJ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.08 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.26 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Position:

    QUAD

71342LA25JGI8 Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-1143) for thermal optimization. It suggests using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a thermal pad on the bottom side of the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow Renesas' recommended operating conditions, use a suitable thermal interface material, and implement a robust thermal management system. Additionally, consider using a heat sink or a fan to maintain a safe operating temperature.
  • Renesas recommends using a low-ESR ceramic capacitor (CIN) with a value between 4.7 μF to 10 μF, and a high-quality, low-ESR output capacitor (COUT) with a value between 10 μF to 22 μF. The capacitor selection should be based on the specific application requirements and operating conditions.
  • To troubleshoot output voltage regulation issues, check the input voltage, output voltage, and feedback voltage (VFB) using an oscilloscope. Verify that the output voltage is within the specified range, and the feedback voltage is within the recommended range (0.8 V to 1.2 V). Also, ensure that the output capacitor is properly selected and placed.
  • Not using the enable pin (EN) or the power-good pin (PG) can lead to unpredictable behavior, increased power consumption, or even damage to the device. The EN pin should be used to control the device's operation, and the PG pin should be used to monitor the output voltage and detect faults.
