7142SA35P - Renesas Electronics

Description: The 7142 is a high-speed 2K x 8 Dual-Port Static RAM designed to be used as a "SLAVE" Dual-Port RAM together with the 7132 "MASTER" Dual-Port in 16-bit-or-more word width systems which would result in full-speed, error free operation without the need for additional discrete logic. An automatic power down feature, controlled by CE, permits the on chip circuitry of each port to enter a very low standby power mode. Military grade product in compliance with MIL-PRF-38535 QML is available.

Download 7142SA35P Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 7142SA35P model

Email notifications will be applied after download.

Send part feedback

Symbol

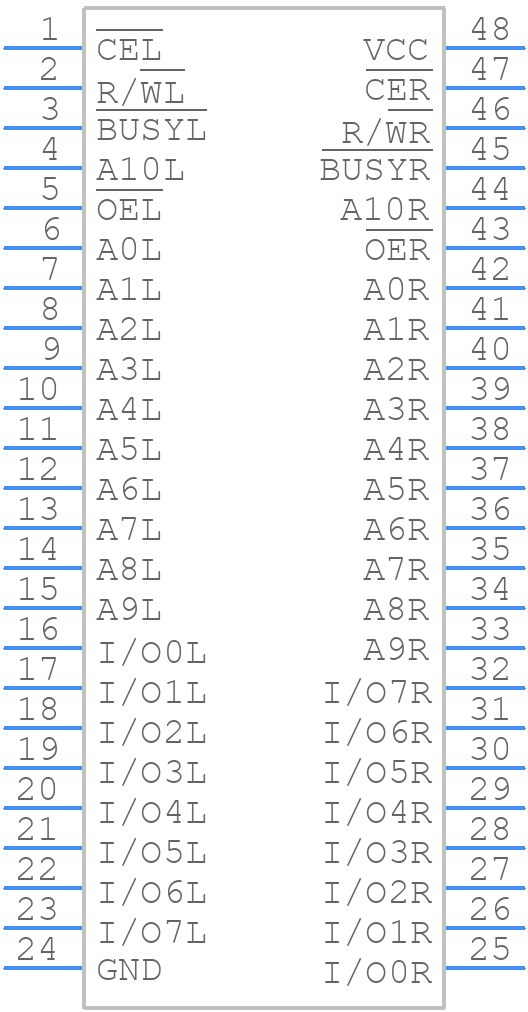

7142SA35P - Renesas Electronics - PCB symbol

PCB Footprints

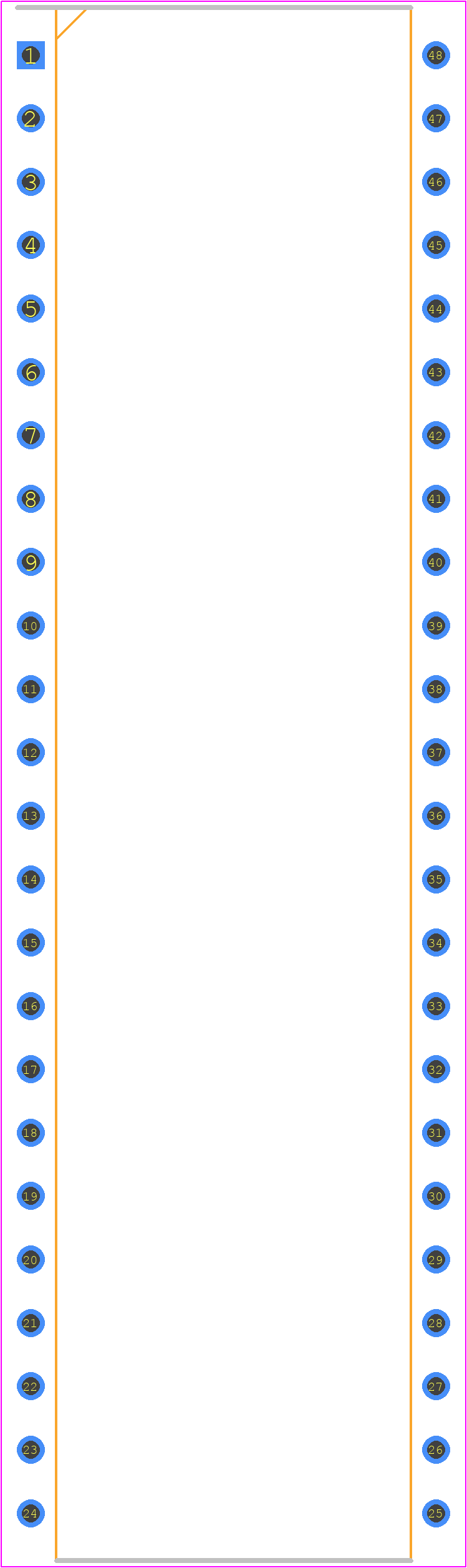

7142SA35P - Renesas Electronics PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 7142SA35P

3D Models

7142SA35P - Renesas Electronics - 3D model - Dual-In-Line Packages - 7142SA35P

Datasheet Download Datasheet
Stock & Prices Price & Stock for 7142SA35P
Part Number 7142SA35P
Manufacturer Renesas Electronics
Pin Count 48
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - 7142SA35P
Released Date Aug 31, 2021
Last Modified Date Oct 24, 2023 7:30 PM UTC
Pinout / Pin List Click Here (Member Only)

7142SA35P Details

Manufacturer Part Number:
7142SA35P
Manufacturer:
Renesas Electronics Corporation

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

7142SA35P Overview

Use the download button to access the 7142SA35P schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 7142S, or try a keyword search, such as SRAMs
