7152AMI-11LF - Renesas Electronics

Description: The 7152A-11 is a clock generator for EMI (Electromagnetic Interference) reduction (see datasheet for frequency ranges and multiplier ratios). Spectral peaks are attenuated by modulating the system clock frequency. Down or center spread profiles are selectable. Down spread will not exceed the maximum frequency of an unspread clock, and center spread does not change the average operating frequency of the system IDT offers many other clocks for computers and computer peripherals. Consult IDT when you need to

Download 7152AMI-11LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

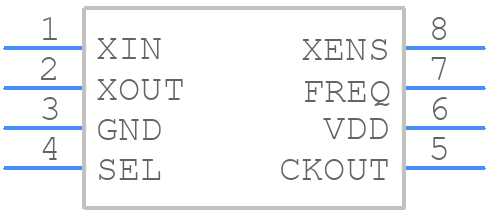

7152AMI-11LF - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
7152AMI-11LF - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC, 150 Mil. Narrow Body
click to zoom
3D Models
7152AMI-11LF - Renesas Electronics - 3D model - Small Outline Packages - 8-pin SOIC, 150 Mil. Narrow Body
click to zoom

7152AMI-11LF Details

  • Manufacturer Part Number:

    7152AMI-11LF

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    DCG8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Clock Frequency-Max:

    67 MHz

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Primary Clock/Crystal Frequency-Nom:

    67 MHz

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • uPs/uCs/Peripheral ICs Type:

    CLOCK GENERATOR, OTHER

7152AMI-11LF Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide in their application note (APL-AN-115) for thermal optimization. It suggests using a 4-layer PCB with a solid ground plane, placing thermal vias under the package, and using a thermal pad on the bottom side of the PCB.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's performance. Renesas provides thermal derating guidelines in the datasheet.
  • Renesas recommends a specific power-up and power-down sequence to prevent latch-up and ensure reliable operation. The sequence involves powering up the VCC supply before the VDD supply, and powering down the VDD supply before the VCC supply.
  • Renesas recommends using ESD protection devices, such as TVS diodes or ESD arrays, on the input and output pins to prevent damage from electrostatic discharge. The datasheet provides guidelines for ESD protection circuit design.
  • The 7152AMI-11LF is not designed to be radiation-hardened, and its performance may be affected by radiation exposure. Renesas provides radiation tolerance data in their application notes, but it's essential to consult with a radiation expert for specific requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7152AMI-11LF Overview

Use the download button to access the 7152AMI-11LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7152A, or try a keyword search, such as Clock Generators
