Description:The 7164 5V CMOS SRAM is organized as 8K x 8. The 7164 offers a reduced power standby mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs of the IDT7164 are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.
Renesas provides a recommended PCB layout guide in their application note (APN) documents, which can be found on their website. The guide includes thermal vias, heat sink recommendations, and PCB layer stack-up suggestions to ensure optimal thermal performance.
Renesas recommends a specific power sequencing scheme to ensure proper device operation. This information can be found in the device's user manual or application notes. Typically, the sequence involves powering up the voltage regulators in a specific order, followed by the clock and reset signals.
Renesas provides decoupling capacitor recommendations in their datasheet or application notes. Typically, a combination of ceramic and electrolytic capacitors is recommended to filter out high-frequency noise and ensure stable power supply. The values and placement of these capacitors depend on the specific application and PCB layout.
Renesas provides troubleshooting guides and FAQs on their website, which cover common issues and their solutions. Additionally, engineers can use debugging tools, such as logic analyzers or oscilloscopes, to identify the root cause of the issue. It's also recommended to review the device's datasheet and application notes to ensure proper configuration and usage.
Yes, Renesas provides EMI/EMC guidelines and recommendations in their application notes and datasheet. Engineers should follow these guidelines to ensure compliance with regulatory standards and to minimize electromagnetic interference. This includes proper PCB layout, shielding, and filtering techniques.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
7164S20YG8 Overview

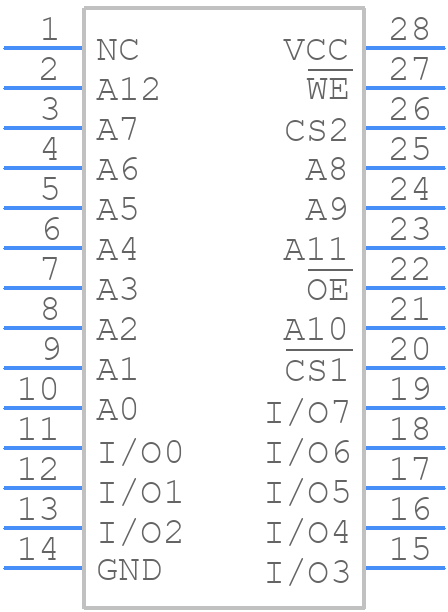

Use the download button to access the 7164S20YG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 7164S,
or try a keyword search, such as SRAMs
