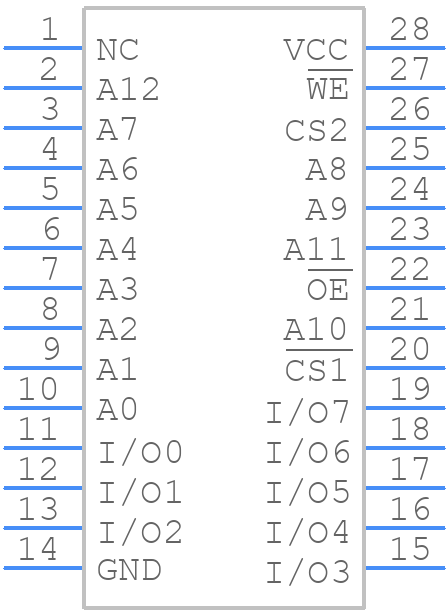

7164S20YGI - Renesas Electronics

7164S20YGI Details

• Manufacturer Part Number:

  7164S20YGI

• Brand Name:

  Renesas

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOJ

• Package Description:

  SOJ-28

• Pin Count:

  28

• Manufacturer Package Code:

  PJG28

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.41

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  Renesas Electronics Corporation

• YTEOL:

  0

• Access Time-Max:

  19 ns

• I/O Type:

  COMMON

• JESD-30 Code:

  R-PDSO-J28

• JESD-609 Code:

  e3

• Length:

  17.9324 mm

• Memory Density:

  65536 bit

• Memory IC Type:

  STANDARD SRAM

• Memory Width:

  8

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  28

• Number of Words:

  8192 words

• Number of Words Code:

  8000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8KX8

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOJ

• Package Equivalence Code:

  SOJ28,.34

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  3.556 mm

• Standby Current-Max:

  0.015 A

• Standby Voltage-Min:

  4.5 V

• Supply Current-Max:

  0.17 mA

• Supply Voltage-Max (Vsup):

  5.5 V

• Supply Voltage-Min (Vsup):

  4.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  J BEND

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  7.5184 mm
