7164S25YGI - Renesas Electronics

Description: The 7164 5V CMOS SRAM is organized as 8K x 8. The 7164 offers a reduced power standby mode. The low-power (L) version also offers a battery backup data retention capability at power supply levels as low as 2V. All inputs and outputs of the IDT7164 are TTL-compatible and operation is from a single 5V supply, simplifying system designs. Fully static asynchronous circuitry is used, requiring no clocks or refreshing for operation. Military grade product is available.

Download 7164S25YGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

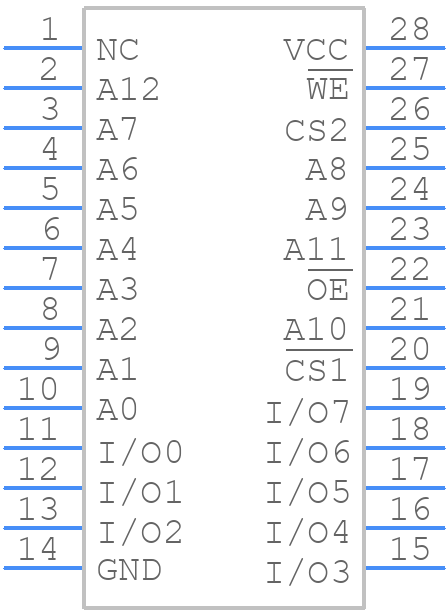

7164S25YGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
7164S25YGI - Renesas Electronics PCB footprint - Other - Other - 7164S25YGI-3
click to zoom
3D Models
7164S25YGI - Renesas Electronics - 3D model - Other - 7164S25YGI-3
click to zoom

7164S25YGI Details

  • Manufacturer Part Number:

    7164S25YGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOJ

  • Package Description:

    SOJ-28

  • Pin Count:

    28

  • Manufacturer Package Code:

    PJG28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    25 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-J28

  • JESD-609 Code:

    e3

  • Length:

    17.9324 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOJ

  • Package Equivalence Code:

    SOJ28,.34

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.556 mm

  • Standby Current-Max:

    0.015 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    J BEND

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.5184 mm
