71BF30-01B12S - Grayhill

Description: Rotary Switches Rotary Switch, 1/4" shaft, PC mount, 30°, 1 deck, 1 pole/deck, 12 position/pole, shorting, fixed stop, 71BF30-01B12S

Download 71BF30-01B12S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 71BF30-01B12S model

Email notifications will be applied after download.

Send part feedback

Symbol

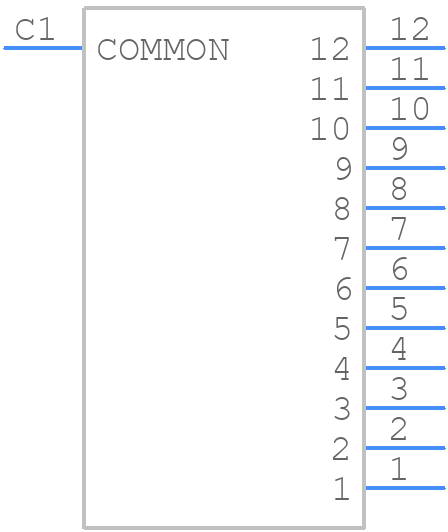

71BF30-01B12S - Grayhill - PCB symbol

PCB Footprints

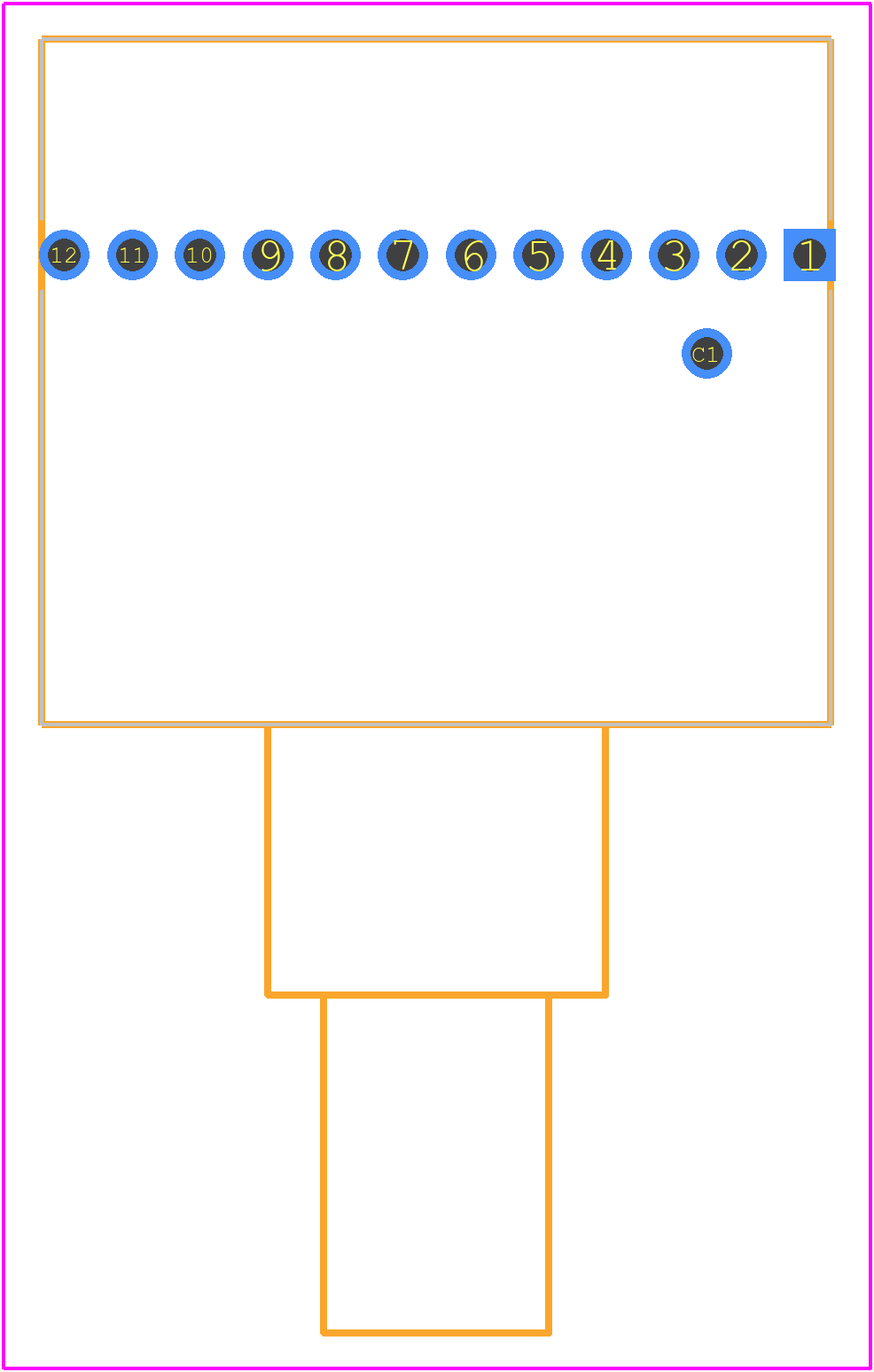

71BF30-01B12S - Grayhill PCB footprint - Other - Other - 71BF30-01B12S-2

3D Models

71BF30-01B12S - Grayhill - 3D model - Other - 71BF30-01B12S-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for 71BF30-01B12S
Part Number 71BF30-01B12S
Manufacturer Grayhill
Pin Count 13
Part Category Switch
Package Category Other
Footprint Name Other - 71BF30-01B12S-2
Released Date Jun 7, 2019
Last Modified Date Jun 10, 2025 11:59 AM UTC
Pinout / Pin List Click Here (Member Only)

71BF30-01B12S Details

Manufacturer Part Number:
71BF30-01B12S
Manufacturer:
Grayhill Inc

Trust Checks

Expert Contribution

System Verified

Community Approved

71BF30-01B12S Overview

Use the download button to access the 71BF30-01B12S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 71BF3, or try a keyword search, such as Rotary Switches
