71BSF30-01B12S - Grayhill

Description: Rotary Switches Rotary Switch, 1/4" shaft, shaft/panel seal, PC mount, 30°, 1 deck, 1 pole/deck, 12 position/pole, shorting, fixed stop, 71BSF30-01B12S

Download 71BSF30-01B12S Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 71BSF30-01B12S model

Email notifications will be applied after download.

Send part feedback

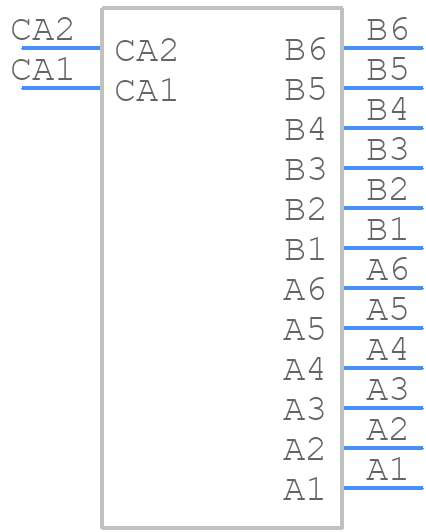

Symbol

71BSF30-01B12S - Grayhill - PCB symbol

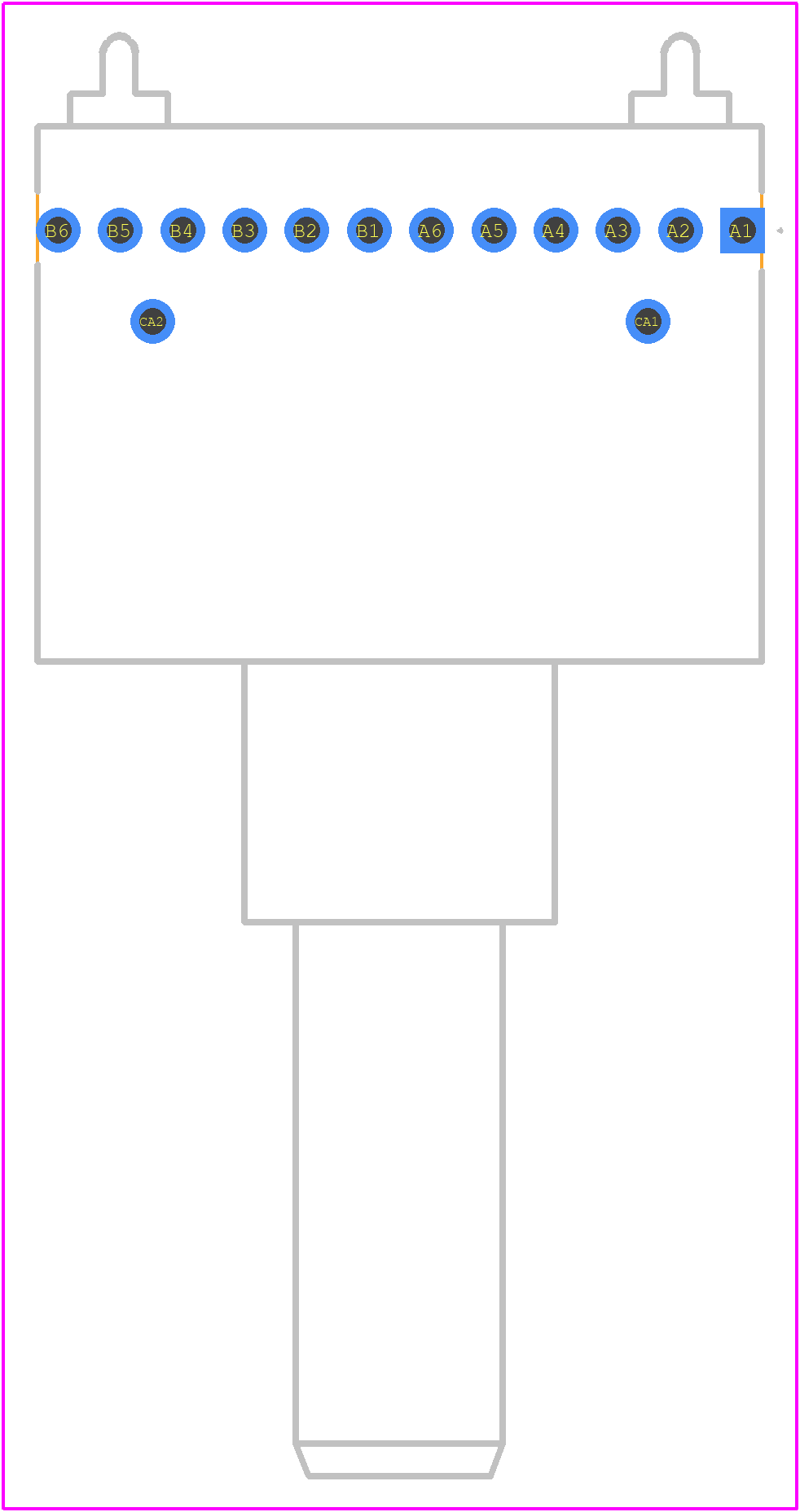

PCB Footprints

71BSF30-01B12S - Grayhill PCB footprint - Other - Other - 71BSF30-01B12S-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for 71BSF30-01B12S
Part Number 71BSF30-01B12S
Manufacturer Grayhill
Pin Count 14
Part Category Switch
Package Category Other
Footprint Name Other - 71BSF30-01B12S-1
Released Date Oct 10, 2024
Last Modified Date Oct 10, 2024 11:24 AM UTC
Pinout / Pin List Click Here (Member Only)

71BSF30-01B12S Details

Manufacturer Part Number:
71BSF30-01B12S
Manufacturer:
Grayhill Inc

Trust Checks

Community Provided

System Verified

Community Approved

71BSF30-01B12S Overview

Use the download button to access the 71BSF30-01B12S schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 71BSF, or try a keyword search, such as Rotary Switches
