71V016SA10PHG - Renesas Electronics

Description: The 71V016 3.3V CMOS SRAM is organized as 64K x 16. All bidirectional inputs and outputs of the 71V016 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V016SA10PHG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

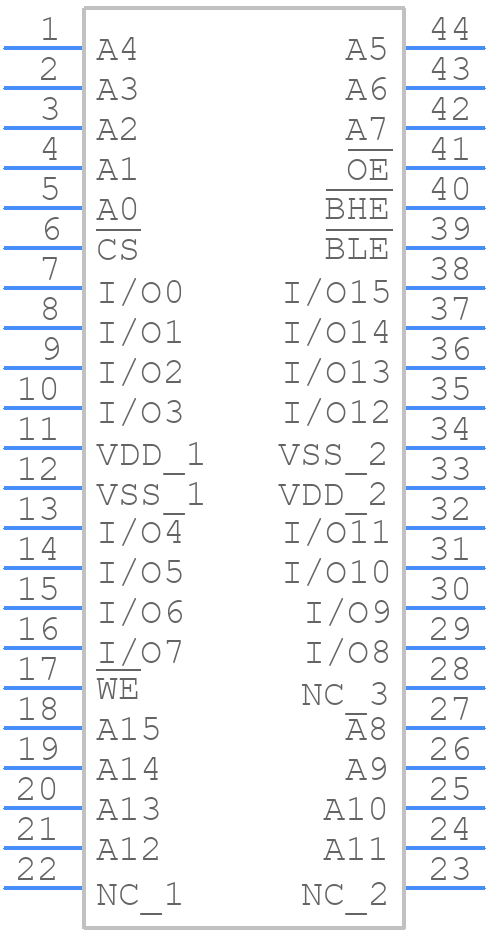

71V016SA10PHG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints

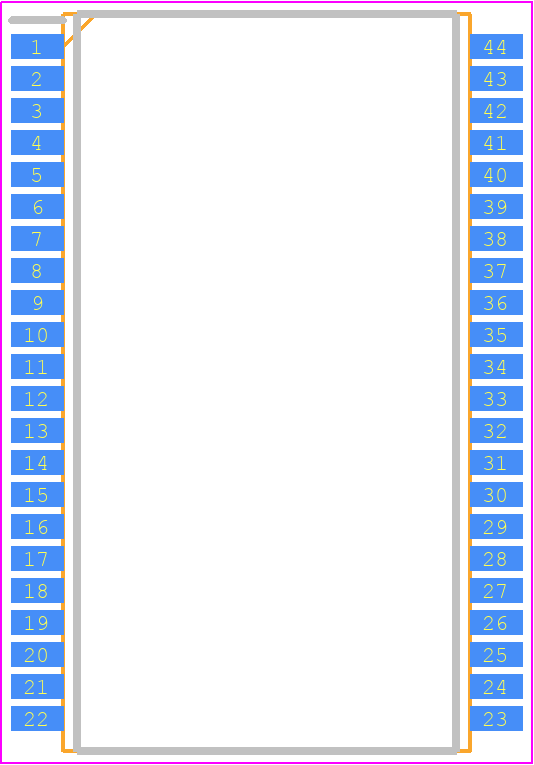

71V016SA10PHG - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - PHG44
click to zoom
3D Models
71V016SA10PHG - Renesas Electronics - 3D model - Small Outline Packages - PHG44
click to zoom

71V016SA10PHG Details

  • Manufacturer Part Number:

    71V016SA10PHG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSOP

  • Package Description:

    TSOP2-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    PHG44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Date Of Intro:

    2020-06-25

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    4

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    18.41 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Ports:

    1

  • Number of Terminals:

    44

  • Number of Words:

    65536 words

  • Number of Words Code:

    64000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    64KX16

  • Output Characteristics:

    3-STATE

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP44,.46,32

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3.15 V

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10.16 mm

71V016SA10PHG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71V016SA10PHG is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can tolerate a wider temperature range during storage, typically from -55°C to +125°C.
  • It's crucial to follow a controlled power-up and power-down sequence to prevent damage to the device. The recommended sequence is to power up VCC before VPP, and power down VPP before VCC. Additionally, ensure that the input signals are stable and within the recommended voltage range during power-up and power-down.
  • The maximum allowable voltage on the input pins of the 71V016SA10PHG is VCC + 0.5V, but not to exceed 7V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input signals are within the recommended voltage range to prevent damage and ensure reliable operation.
  • A reliable reset circuit is crucial for the 71V016SA10PHG. A recommended approach is to use a resistor-capacitor (RC) network connected to the reset pin, which ensures a clean and stable reset signal. The reset signal should be asserted for at least 10ms to ensure a proper reset.
  • When designing a PCB with the 71V016SA10PHG, it's essential to follow good layout practices to minimize noise, ensure signal integrity, and prevent electromagnetic interference (EMI). Keep the signal traces short, use a solid ground plane, and avoid running signal traces near the device's power pins.
