71V124SA15PHGI - Renesas Electronics

Description: The 71V124 3.3V CMOS SRAM is organized as 128K x 8. The JEDEC center power/GND pinout reduces noise generation and improves system performance. All bidirectional inputs and outputs of the 71V124 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used; no clocks or refreshes are required for operation.

Download 71V124SA15PHGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

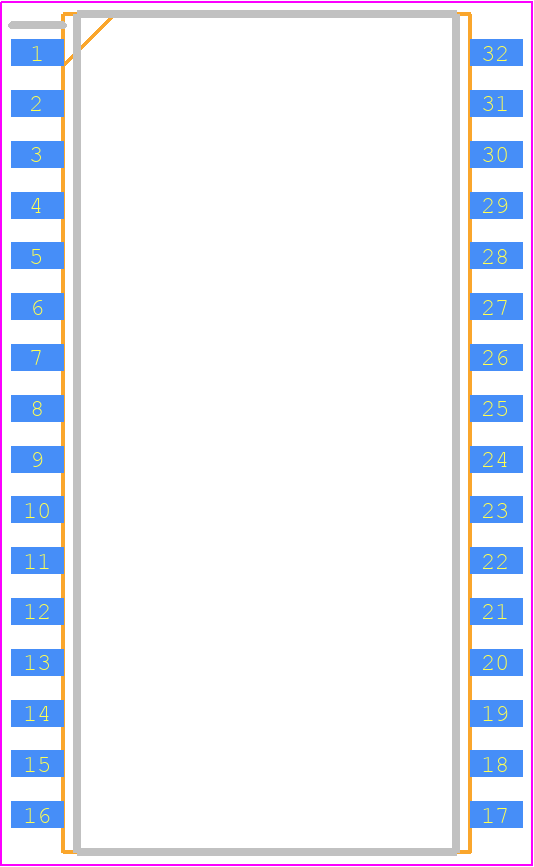

71V124SA15PHGI - Renesas Electronics PCB footprint - Small Outline Packages - Small Outline Packages - IDT71V124SA10PHG_a
click to zoom
3D Models
71V124SA15PHGI - Renesas Electronics  - 3D model - Small Outline Packages - IDT71V124SA10PHG_a
click to zoom

71V124SA15PHGI Details

  • Manufacturer Part Number:

    71V124SA15PHGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSOP

  • Pin Count:

    32

  • Manufacturer Package Code:

    PHG32

  • ECCN Code:

    3A991.b.2.b

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    15 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    R-PDSO-G32

  • JESD-609 Code:

    e3

  • Length:

    20.95 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP2

  • Package Equivalence Code:

    TSOP32,.46

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Standby Current-Max:

    0.01 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.12 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    10.16 mm

71V124SA15PHGI Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 71V124SA15PHGI is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at a wider temperature range, but with reduced performance and reliability.
  • The power-up and power-down sequencing for the 71V124SA15PHGI should be handled carefully to avoid damage to the device. It's recommended to power up the VCC supply before the VDD supply, and power down the VDD supply before the VCC supply. Additionally, ensure that the input signals are stable and within the recommended voltage range during power-up and power-down.
  • The maximum clock frequency supported by the 71V124SA15PHGI is 100 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the system design, PCB layout, and signal integrity considerations.
  • To ensure signal integrity and reduce noise in the 71V124SA15PHGI-based design, follow best practices for PCB layout, such as using differential signaling, separating analog and digital signals, and using decoupling capacitors. Additionally, consider using signal termination resistors, and ensure that the power supply is clean and well-regulated.
  • The recommended layout and routing strategy for the 71V124SA15PHGI involves placing the device near the center of the PCB, using a symmetrical layout, and minimizing the length of the signal traces. Additionally, use a solid ground plane, and route the clock and data signals on separate layers to reduce crosstalk and noise.
