71V416S10BEG - Renesas Electronics

Description: The 71V416 3.3V CMOS SRAM is organized as 256K x 16. All bidirectional inputs and outputs of the 71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.

Download 71V416S10BEG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

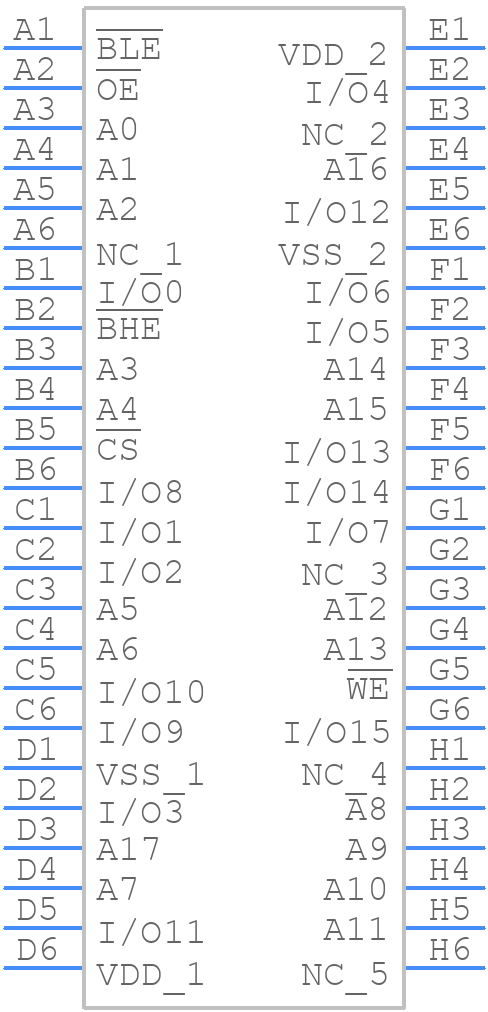

71V416S10BEG - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
71V416S10BEG - Renesas Electronics PCB footprint - BGA - BGA - BEG-48
click to zoom
3D Models
71V416S10BEG - Renesas Electronics - 3D model - BGA - BEG-48
click to zoom

71V416S10BEG Details

  • Manufacturer Part Number:

    71V416S10BEG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    CABGA

  • Pin Count:

    48

  • Manufacturer Package Code:

    BEG48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.b.2.a

  • HTS Code:

    8542.32.00.41

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    5

  • Access Time-Max:

    10 ns

  • I/O Type:

    COMMON

  • JESD-30 Code:

    S-PBGA-B48

  • JESD-609 Code:

    e1

  • Memory Density:

    4194304 bit

  • Memory IC Type:

    STANDARD SRAM

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Number of Words:

    262144 words

  • Number of Words Code:

    256000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    256KX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA48,6X8,30

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Standby Current-Max:

    0.02 A

  • Standby Voltage-Min:

    3 V

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.75 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    40

71V416S10BEG Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power planes. Use a decoupling capacitor (e.g., 0.1uF) close to the VCC pin.
  • The 71V416S10BEG has a thermal pad on the bottom. Ensure good thermal contact with the PCB by using a thermal interface material (e.g., thermal tape or thermal grease). Keep the ambient temperature below 85°C and provide adequate airflow.
  • The maximum clock frequency for the 71V416S10BEG is 10 MHz. However, it's recommended to operate at a frequency below 8 MHz to ensure reliable operation and minimize power consumption.
  • Use an external POR circuit with a voltage supervisor (e.g., TLV7031) to ensure a clean power-on reset. The POR circuit should be connected to the VCC pin and the reset pin (RST) of the 71V416S10BEG.
  • Use ESD protection diodes (e.g., 1.5KE6.8A) on the input/output pins to protect against electrostatic discharge. Ensure the diodes are connected between the pin and the ground plane.
