721-133/001-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 5 mm; 3-pole

Download 721-133/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

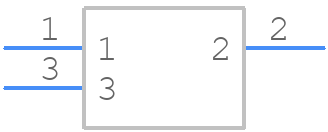

721-133/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

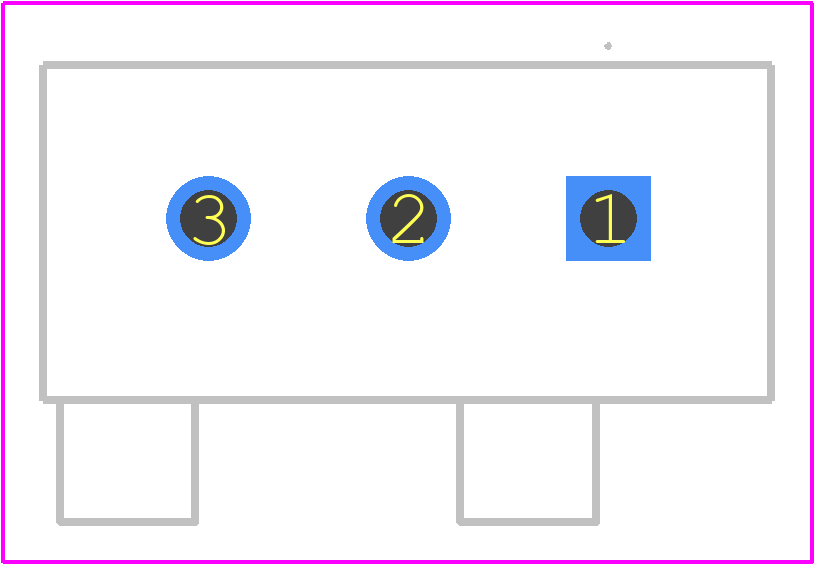

721-133/001-000 - Wago PCB footprint - Other - Other - 721-133/001-000-1
click to zoom
3D Models
721-133/001-000 - Wago - 3D model - Other - 721-133/001-000-1
click to zoom

721-133/001-000 Details

  • Manufacturer Part Number:

    721-133/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

721-133/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 721-133/001-000 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in).
  • Yes, the 721-133/001-000 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the 721-133/001-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial and transportation applications.
  • The 721-133/001-000 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • Yes, the 721-133/001-000 connector is designed for use in automation systems, including industrial control systems, robotics, and machine building applications.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

721-133/001-000 Overview

Use the download button to access the 721-133/001-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 721-1, or try a keyword search, such as Headers and Edge Type Connectors
