7296-50C2TH - 3M

7296-50C2TH Details

• Manufacturer Part Number:

  7296-50C2TH

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  3M Interconnect

• YTEOL:

  0

• Additional Feature:

  STANDARD: DIN 41612

• Body Breadth:

  0.437 inch

• Body Depth:

  0.698 inch

• Body Length:

  3.701 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  AU ON NI

• Contact Finish Termination:

  Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

• Contact Gender:

  MALE

• Contact Material:

  BRASS

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  YES

• Dielectric Withstanding Voltage:

  1000VAC V

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  GLASS FILLED POLYESTER

• JESD-609 Code:

  e0

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Name of Rows Loaded:

  A,B,C

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

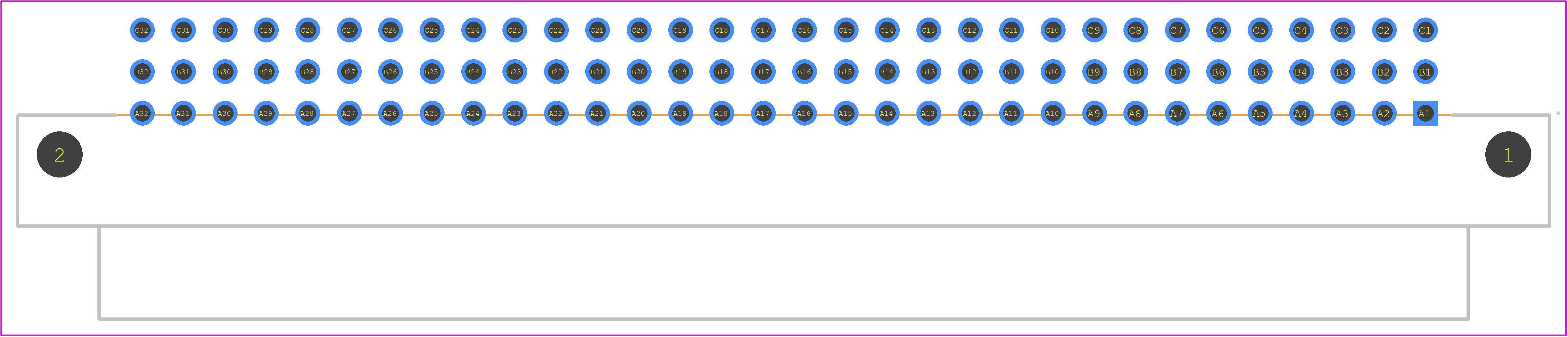

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  2.54 mm

• Plating Thickness:

  15u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.114 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  96
