72V71660DRG - Renesas Electronics

Description: A ST-BUS® compatible digital switch controlled by amicroprocessor which can handle from 128 x 128 to 32K x 32K inputs to multiple outputs.

Download 72V71660DRG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

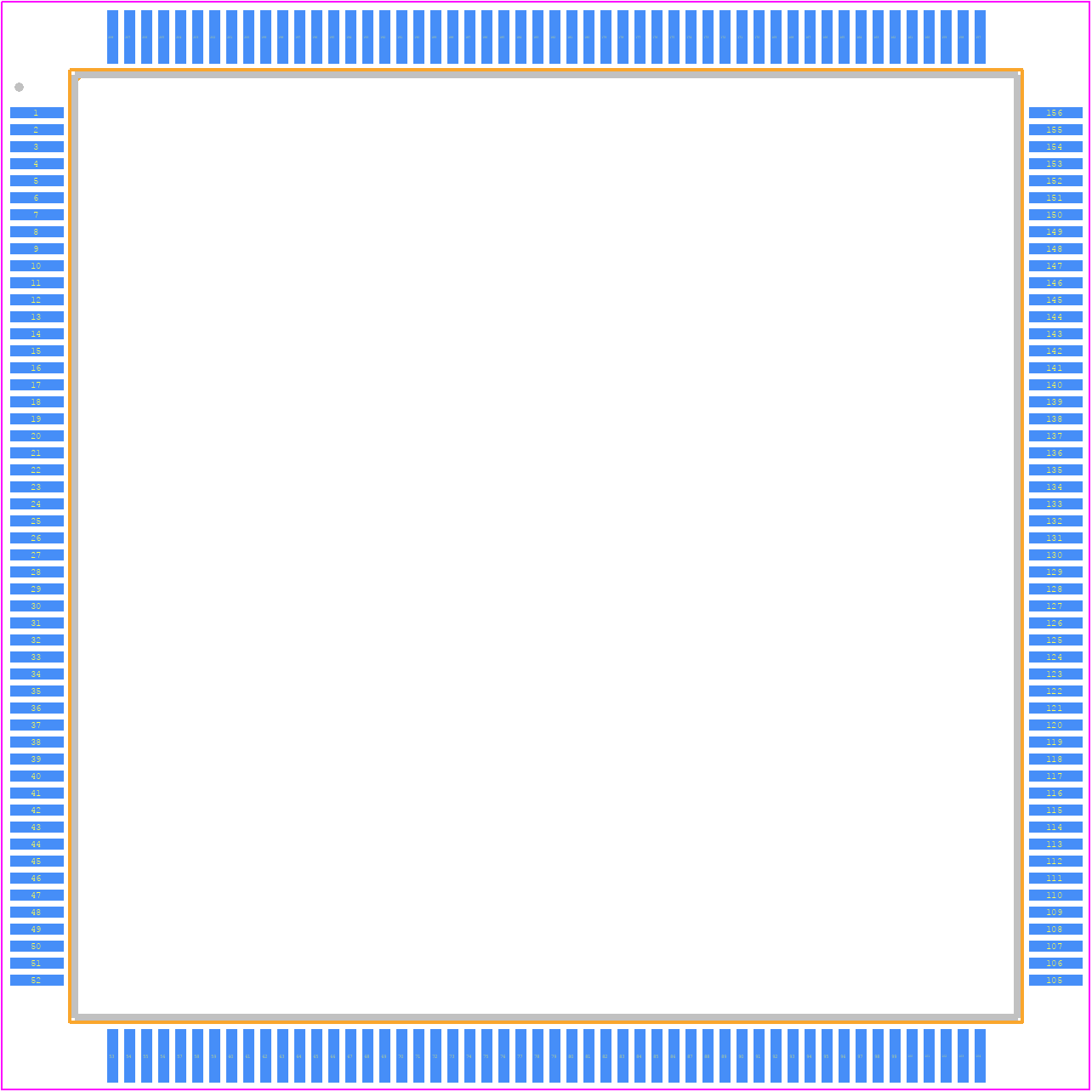

72V71660DRG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - DRG208
click to zoom
3D Models
72V71660DRG - Renesas Electronics  - 3D model - Quad Flat Packages - DRG208
click to zoom

72V71660DRG Details

  • Manufacturer Part Number:

    72V71660DRG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    PQFP

  • Pin Count:

    208

  • Manufacturer Package Code:

    DRG208

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    DIGITAL TIME SWITCH

  • Terminal Finish:

    MATTE TIN

72V71660DRG Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 72V71660DRG is -40°C to 85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures beyond this range, but with reduced performance and reliability.
  • To ensure reliable data transfer using the 72V71660DRG's SPI interface, it's crucial to follow the recommended clock frequency, ensure proper signal termination, and use a suitable pull-up resistor value for the CS (Chip Select) pin. Additionally, implement error detection and correction mechanisms, such as CRC or checksum, to detect and correct data transmission errors.
  • The maximum clock frequency supported by the 72V71660DRG's SPI interface is 20 MHz, as specified in the datasheet. However, it's recommended to operate at a lower frequency, such as 10 MHz, to ensure reliable data transfer and minimize the risk of errors.
  • The 72V71660DRG has an internal POR and BOD circuitry. To handle POR, ensure that the power supply voltage (VCC) rises monotonically during power-up, and the device will automatically reset when VCC reaches the minimum operating voltage. For BOD, the device will reset when the supply voltage falls below the brown-out detection threshold (typically around 2.2V). Implement external circuitry, such as a voltage supervisor or a reset generator, to ensure a clean power-on reset and brown-out detection.
  • For optimal performance and reliability, follow these layout and routing guidelines for the 72V71660DRG's PCB design: keep signal traces short and direct, use a solid ground plane, and avoid crossing signal traces over the device's power pins. Additionally, ensure that the device's power pins (VCC and GND) are connected to a low-impedance power supply and decoupled with suitable capacitors.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

72V71660DRG Overview

Use the download button to access the 72V71660DRG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 72V71, or try a keyword search, such as Telecom Switching Circuits

Parts related to 72V71660DRG

Showing 0 results

72V71660DRG Alternates

Showing results

Image Part Number Model
Part Image IDT72V71660DRG8 Integrated Device Technology Inc

Digital Time Switch, PQFP208

Part Image 72V71660DR Integrated Device Technology Inc

Digital Time Switch, PQFP208
