7301SD9AV2BE - LITTELFUSE

Description: Toggle Switches -30ºC to 85°C Vert. right angle, PC thru-hole

Download 7301SD9AV2BE Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

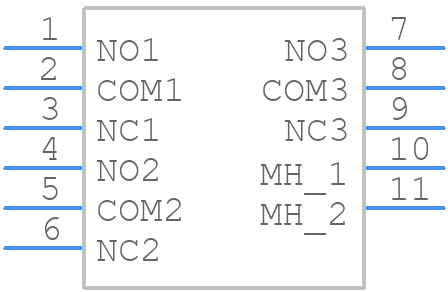

7301SD9AV2BE - LITTELFUSE - PCB symbol
click to zoom
PCB Footprints

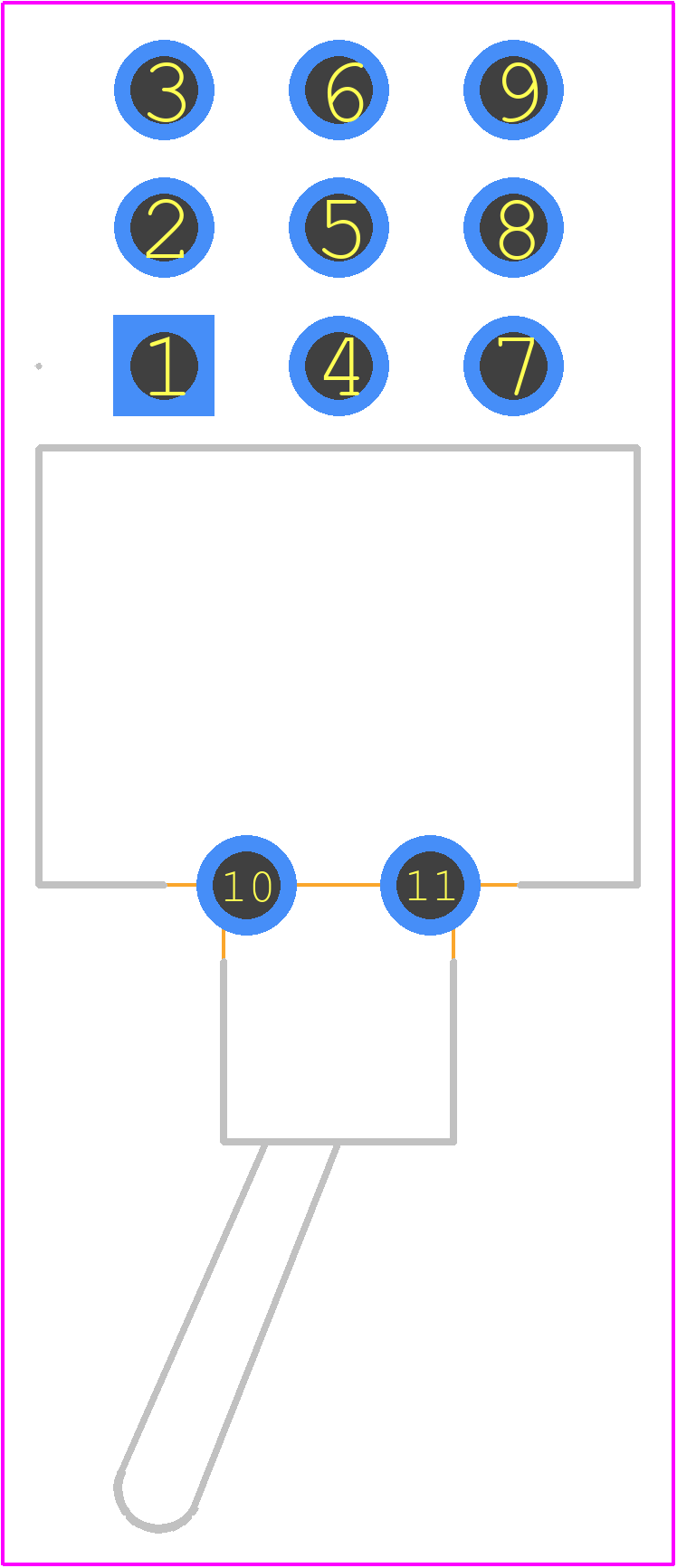

7301SD9AV2BE - LITTELFUSE PCB footprint - Other - Other - 7301SD9AV2BE-3
click to zoom

7301SD9AV2BE Details

  • Manufacturer Part Number:

    7301SD9AV2BE

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Manufacturer:

    Littelfuse Inc

  • JESD-609 Code:

    e4

  • Switch Type:

    TOGGLE SWITCH

  • Terminal Finish:

    GOLD OVER NICKEL

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

7301SD9AV2BE Overview

Use the download button to access the 7301SD9AV2BE schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like 7301S, or try a keyword search, such as Toggle Switches
