The recommended torque specification for the 73096-2 connectors is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Yes, the 73096-2 connectors are designed to withstand high-vibration environments and are suitable for applications with intense mechanical stress.
The 73096-2 connectors are rated for operating temperatures between -20°C to 105°C (-4°F to 221°F). However, it's recommended to derate the current capacity at higher temperatures.
Yes, the 73096-2 connectors are designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
The recommended wire size range for the 73096-2 connectors is 24-20 AWG (0.25-0.5 mm²).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
73096-2 Overview

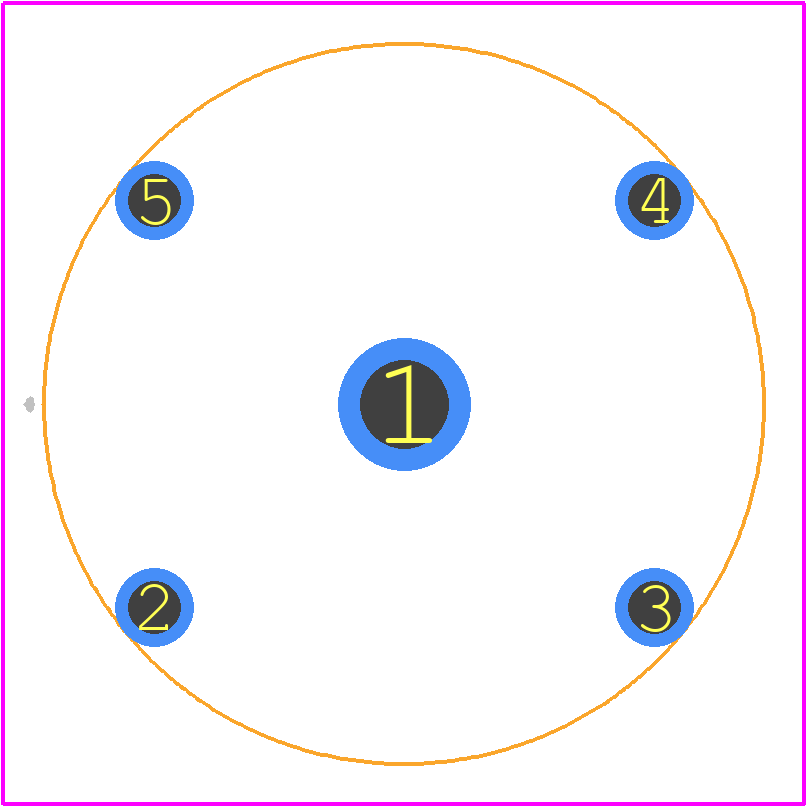

Use the download button to access the 73096-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 73096,
or try a keyword search, such as Other Interconnects
