- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 73100-0135
- Part Number 73100-0135
- Manufacturer Molex
- Pin Count 5
- Part Category Connector
- Package Category Other

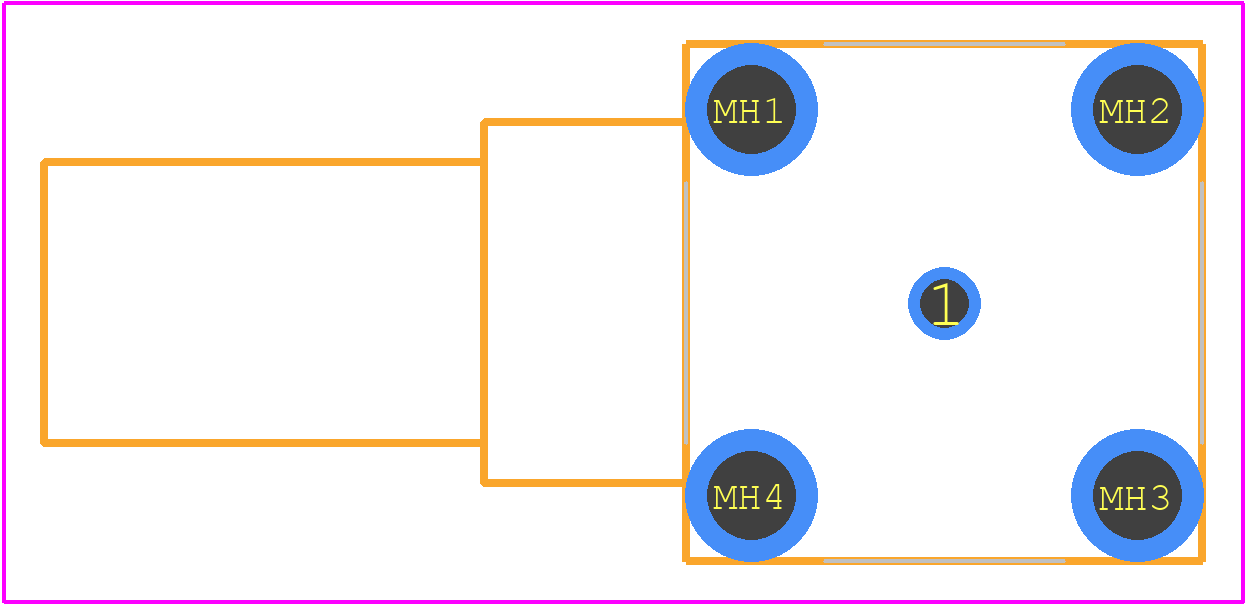

- Footprint Name Other - 73100-0135-2
- Released Date Dec 3, 2020
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
73100-0135 Details
-
Manufacturer Part Number:
73100-0135
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Factory Lead Time:
10 Weeks
-
Manufacturer:
Molex
-
YTEOL:
6.9
-
Body/Shell Style:
RECEPTACLE
-
Characteristic Impedance:
50 Ω
73100-0135 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 73100-0135 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 73100-0135 connector is designed for indoor use, but it can be used in outdoor or harsh environmental applications with proper sealing and protection. Molex offers additional sealing options or specialized connectors for extreme environmental conditions.
-
The 73100-0135 connector is designed to accommodate wire sizes from 24 AWG to 16 AWG. Using larger wire sizes may require specialized tools or adapters, and it's essential to ensure proper wire stripping and termination to prevent damage to the connector.
-
The 73100-0135 connector is designed to be compatible with Molex's mating connectors. While it may be possible to use it with connectors from other manufacturers, compatibility and reliability cannot be guaranteed. It's recommended to use Molex's mating connectors for optimal performance and reliability.
Trust Checks
System Verified
73100-0135 Overview
Use the download button to access the 73100-0135 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 73100,
or try a keyword search, such as RF TNC Connectors
