732-8254-16 - TE Connectivity

Description: Body Features: Primary Product Material Composite | Configuration Features: Number of Positions 8 | Contact Features: Contact Current Rating (Max) 13 AMP | Pole Configuration 8 | Contact Type Pin | Housing Features: Centerline (Pitch) 4.62 MM | Centerline (Pitch) .18 INCH | Mechanical Attachment: Connector Mounting Type Board Mount | Operation/Application: Circuit Application Power, Signal & High Speed Data | Packaging Features: Packaging Method Package | Packaging Quantity 1 | Product Type Features: Rectan

Download 732-8254-16 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
732-8254-16 - TE Connectivity - PCB symbol
click to zoom

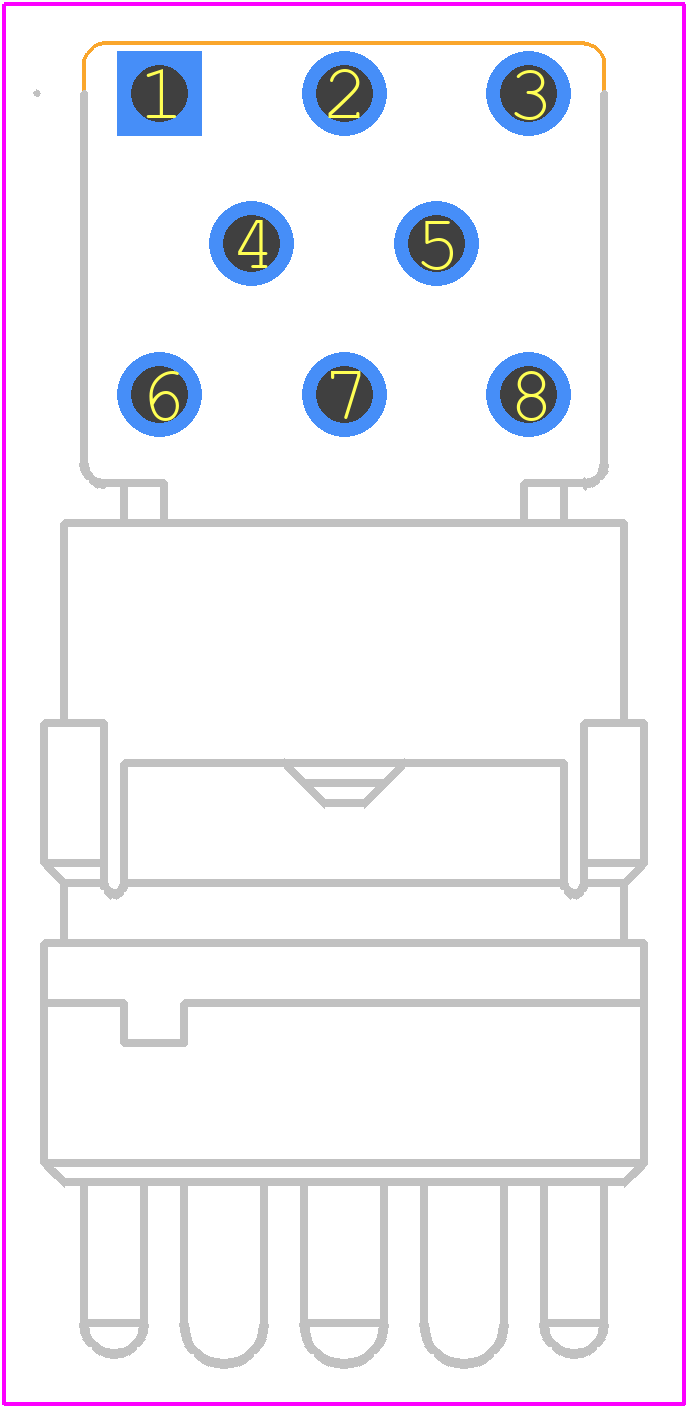

PCB Footprints
732-8254-16 - TE Connectivity PCB footprint - Other - Other - 732-8254-16-4
click to zoom
3D Models
732-8254-16 - TE Connectivity - 3D model - Other - 732-8254-16-4
click to zoom

732-8254-16 Details

  • Manufacturer Part Number:

    732-8254-16

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks, 3 Days

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.7

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    13A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    13 A

  • Shell Material:

    COMPOSITE

  • Terminal Pitch:

    4.62 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

732-8254-16 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure reliable connections and prevent damage to the connector.
  • Yes, the 732-8254-16 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial equipment.
  • The operating temperature range for the 732-8254-16 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the 732-8254-16 connector is designed to operate in harsh environments. It has a IP67 rating, which means it can withstand exposure to dust, water, and other contaminants. Additionally, the connector's materials are resistant to corrosion and can operate in environments with high humidity or exposure to chemicals.
  • While the 732-8254-16 connector is designed for use with 16 AWG wire, it can accommodate wire sizes ranging from 14 AWG to 18 AWG. However, it's essential to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

732-8254-16 Overview

Use the download button to access the 732-8254-16 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 732-8, or try a keyword search, such as Multiway Rack and Panel Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
