732-8254-99 - TE Connectivity

Description: Body Features: Primary Product Material Composite | Configuration Features: Number of Positions 11 | Contact Features: Contact Type Pin | Contact Current Rating (Max) 13 AMP | Housing Features: Centerline (Pitch) 4.4 MM | Centerline (Pitch) .103 INCH | Centerline (Pitch) .173 INCH | Centerline (Pitch) 2.62 MM | Mechanical Attachment: Connector Mounting Type Board Mount | Operation/Application: Circuit Application Power, Signal & High Speed Data | Packaging Features: Packaging Quantity 1 | Packaging Method B

Download 732-8254-99 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
732-8254-99 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

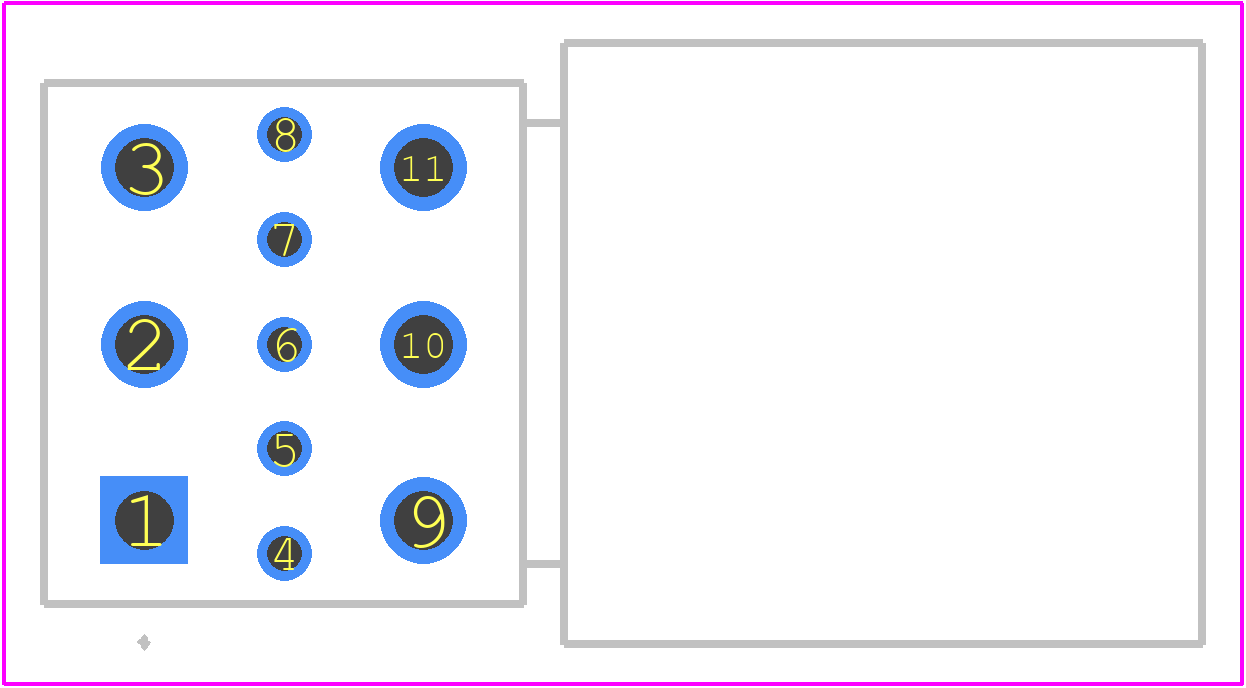

732-8254-99 - TE Connectivity PCB footprint - Other - Other - 732-8254-99-5
click to zoom
3D Models
732-8254-99 - TE Connectivity - 3D model - Other - 732-8254-99-5
click to zoom

732-8254-99 Details

  • Manufacturer Part Number:

    732-8254-99

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.65

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    13A

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Current (Signal):

    13 A

  • Shell Material:

    COMPOSITE

  • Terminal Pitch:

    2.62 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    11
