73251-2209 - Molex

Description: RF Connectors / Coaxial Connectors 50 Ohms, SMA Jack, Right-Angle PCB, Flash Gold, 50 Pieces Per Tray

Download 73251-2209 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
73251-2209 - Molex - PCB symbol
click to zoom
PCB Footprints

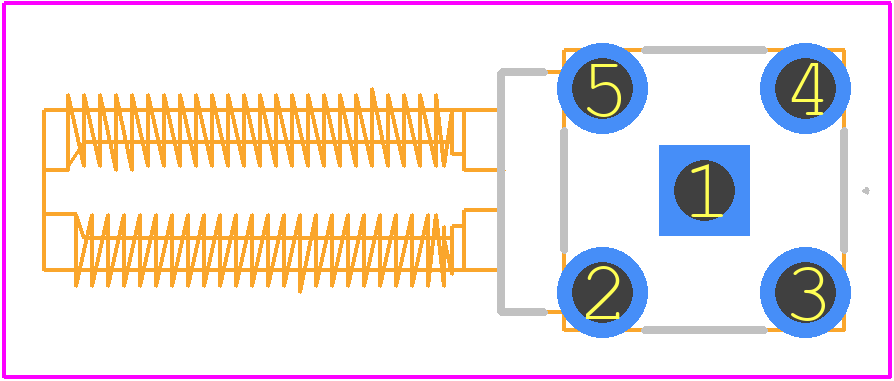

73251-2209 - Molex PCB footprint - Other - Other - 73251-2209-2
click to zoom
3D Models
73251-2209 - Molex - 3D model - Other - 73251-2209-2
click to zoom

73251-2209 Details

  • Manufacturer Part Number:

    73251-2209

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    Molex

  • YTEOL:

    8

  • Body Depth:

    0.77 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF SMA CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    3 mΩ

  • Contact Style:

    COAX

  • Coupling Type:

    THREADED

  • Dielectric Withstanding Voltage:

    1400VAC V

  • Durability:

    500 Cycles

  • Insertion Loss:

    0.17 dB

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYTETRAFLUOROETHYLENE

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Frequency-Max:

    18 GHz

  • Operating Temperature-Max:

    165 °C

  • Operating Temperature-Min:

    -65 °C

  • Shell Finish:

    GOLD

  • Shell Material:

    BRASS

  • Terminal Length:

    0.155 inch

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    1

  • VSWR:

    1.07

73251-2209 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 73251-2209 connector is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 73251-2209 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor or harsh environments, it's essential to take additional measures to ensure the connector is properly sealed and protected from the elements.
  • While the datasheet specifies 20-22 AWG wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with Molex or a qualified engineer to ensure the connector can handle the desired wire size and meet the required electrical and mechanical specifications.
  • The 73251-2209 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its electrical and mechanical performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

73251-2209 Overview

Use the download button to access the 73251-2209 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 73251, or try a keyword search, such as RF SMA/SSMA Connectors

About Molex

Molex is a global manufacturer of connectivity solutions for various industries. The company offers a wide range of products including connectors, cables, antennas, sensors, and integrated systems. Molex's products are used in diverse applications such as automotive, telecommunications, data centers, consumer electronics, industrial automation, medical devices, and aerospace.
