733-342 - Wago

Description: THT male header; 0.8 x 0.8 mm solder pin; straight; 100% protected against mismating; Pin spacing 2.5 mm; 12-pole

Download 733-342 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
733-342 - Wago - PCB symbol
click to zoom
PCB Footprints

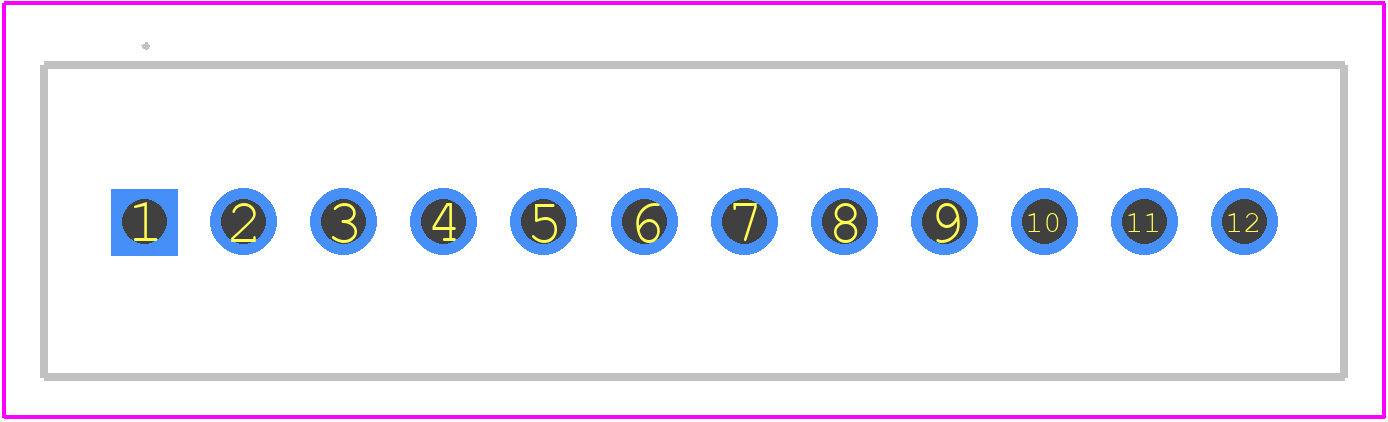

733-342 - Wago PCB footprint - Other - Other - 733-342-1
click to zoom
3D Models
733-342 - Wago - 3D model - Other - 733-342-1
click to zoom

733-342 Details

  • Manufacturer Part Number:

    733-342

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.73

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, SAFETY APPROVAL: KEMA; KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    ABS; CCA; CSA; DNVGL; EN; IEC

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

733-342 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 733-342 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 733-342 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6.
  • Yes, the 733-342 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • No, the 733-342 connector is not designed for use in explosive atmospheres. It does not meet the requirements of ATEX or IECEx.
  • The maximum operating temperature for the 733-342 connector is 85°C (185°F).
