733-370/105-604 - Wago

Description: THR male header; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 2.5 mm; 10-pole

Download 733-370/105-604 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
733-370/105-604 - Wago - PCB symbol
click to zoom
PCB Footprints

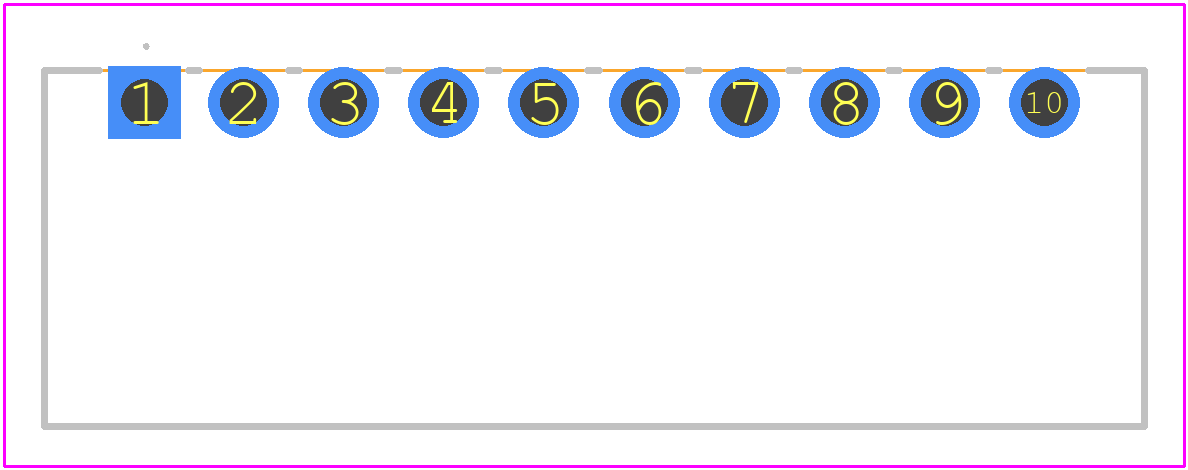

733-370/105-604 - Wago PCB footprint - Other - Other - 733-370/105-604-2
click to zoom
3D Models
733-370/105-604 - Wago - 3D model - Other - 733-370/105-604-2
click to zoom

733-370/105-604 Details

  • Manufacturer Part Number:

    733-370/105-604

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL94V-0, GLASS FILLED POLYPHTHALAMIDE, SAFETY APPROVAL: UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    ABS; CCA; CSA; DNVGL; IEC/EN

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

733-370/105-604 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 733-370/105-604 connector is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 733-370/105-604 connector is designed to be used in harsh environments and can withstand temperatures ranging from -40°C to 125°C and vibrations up to 10g.
  • The maximum current rating for the 733-370/105-604 connector is 41 A per pole, depending on the specific wire size and application.
  • Yes, the 733-370/105-604 connector is designed to be used for both power and signal applications simultaneously, with separate contacts for power and signal transmission.
  • Yes, the 733-370/105-604 connector is designed to be compatible with other WAGO products and systems, including their TOPJOB S and XCOM series.
