Part Image

733-370 - Wago

Description: THT male header; 0.8 x 0.8 mm solder pin; angled; 100% protected against mismating; Pin spacing 2.5 mm; 10-pole

Download 733-370 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
733-370 - Wago - PCB symbol
click to zoom
PCB Footprints

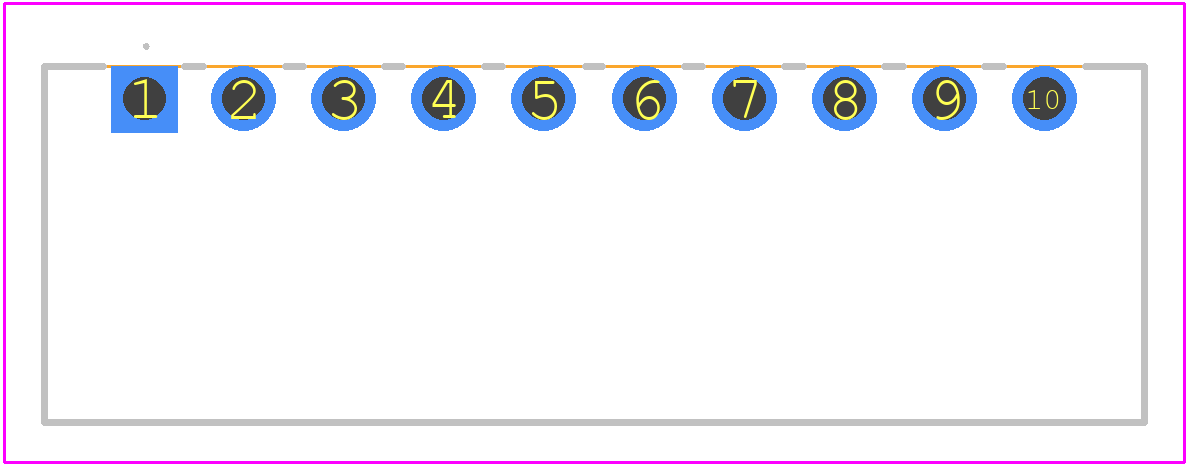

733-370 - Wago PCB footprint - Other - Other - 733-370-1
click to zoom
3D Models
733-370 - Wago - 3D model - Other - 733-370-1
click to zoom

733-370 Details

  • Manufacturer Part Number:

    733-370

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, SAFETY APPROVAL: KEMA; KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    4 A

  • Rated Voltage:

    150 V

  • Safety Approval:

    ABS; CCA; CSA; DNVGL; EN; IEC

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

733-370 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 733-370 connector is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs).
  • Yes, the 733-370 connector is suitable for outdoor use, as it has a IP67 rating, which means it is protected against dust and water ingress.
  • Yes, the 733-370 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 60068-2-6).
  • The operating temperature range of the 733-370 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 733-370 connector meets the requirements of UL 1977 and UL 498 standards.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

733-370 Overview

Use the download button to access the 733-370 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 733-3, or try a keyword search, such as Terminals and Terminal Blocks
