73358-1041 - Molex

Description: RF Connectors / Coaxial Connectors MPRF GANG OF 8 JACK SLIDE LATCH

Download 73358-1041 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

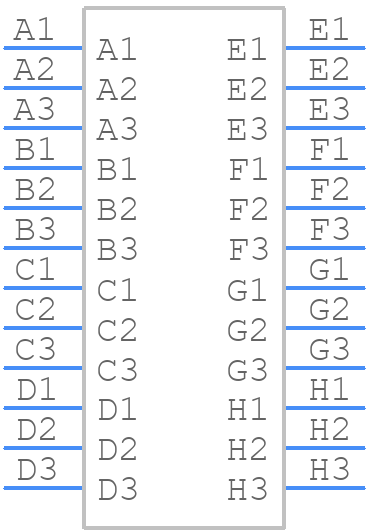

73358-1041 - Molex - PCB symbol
click to zoom
PCB Footprints

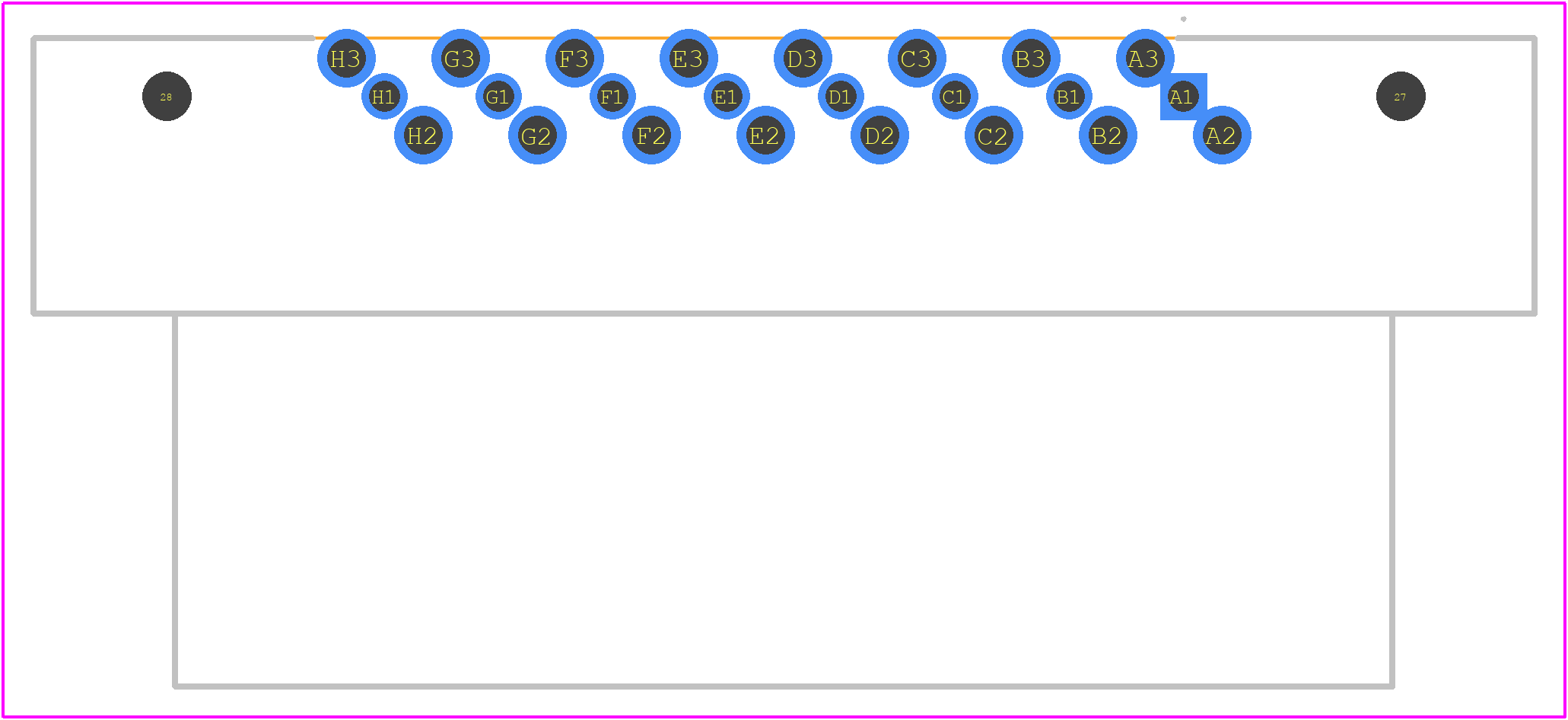

73358-1041 - Molex PCB footprint - Other - Other - 73358-1041-1
click to zoom
3D Models
73358-1041 - Molex - 3D model - Other - 73358-1041-1
click to zoom

73358-1041 Details

  • Manufacturer Part Number:

    73358-1041

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.10

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Molex

  • Body Breadth:

    0.348 inch

  • Body Depth:

    0.838 inch

  • Body Length:

    1.942 inch

  • Body/Shell Style:

    JACK

  • Characteristic Impedance:

    50 Ω

  • Connector Type:

    RF CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT APPLICABLE

  • Coupling Type:

    SNAP

  • Insertion Loss:

    0.2 dB

  • Insulator Material:

    POLYAMIDE

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Operating Frequency-Max:

    10 GHz

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Reference Standard:

    UL

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    8

  • VSWR:

    1.7
