734-135/108-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Threaded flange; Pin spacing 3.5 mm; 5-pole

Download 734-135/108-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

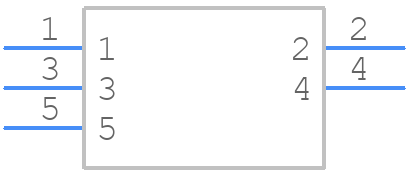

734-135/108-000 - Wago - PCB symbol
click to zoom
PCB Footprints

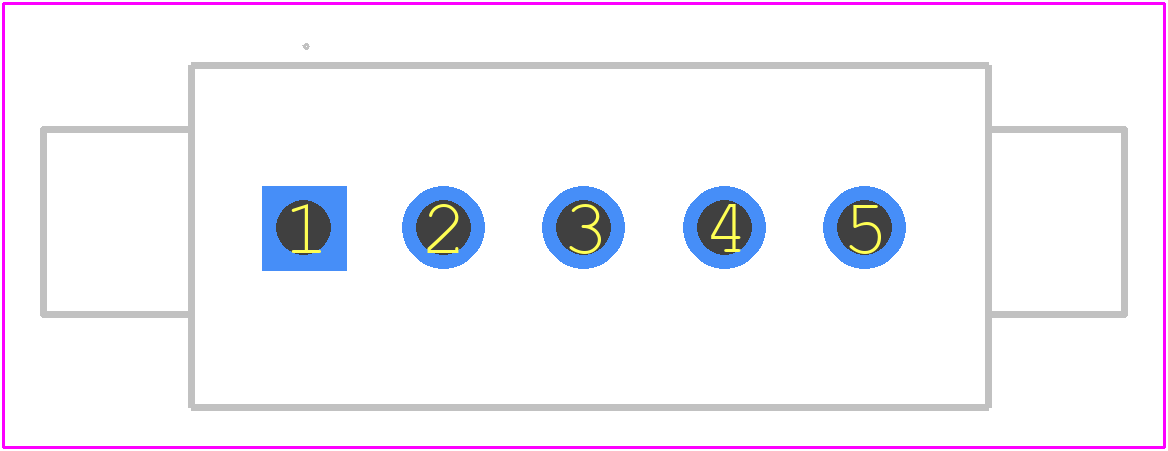

734-135/108-000 - Wago PCB footprint - Other - Other - 734-135/108-000-1
click to zoom
3D Models
734-135/108-000 - Wago - 3D model - Other - 734-135/108-000-1
click to zoom

734-135/108-000 Details

  • Manufacturer Part Number:

    734-135/108-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0; POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-135/108-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure reliable connections.
  • Yes, the 734-135/108-000 connector is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • Yes, the connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14).
  • The operating temperature range of the 734-135/108-000 connector is -40°C to +125°C (-40°F to +257°F).
