734-143 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.5 mm; 13-pole

Download 734-143 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-143 - Wago - PCB symbol
click to zoom
PCB Footprints

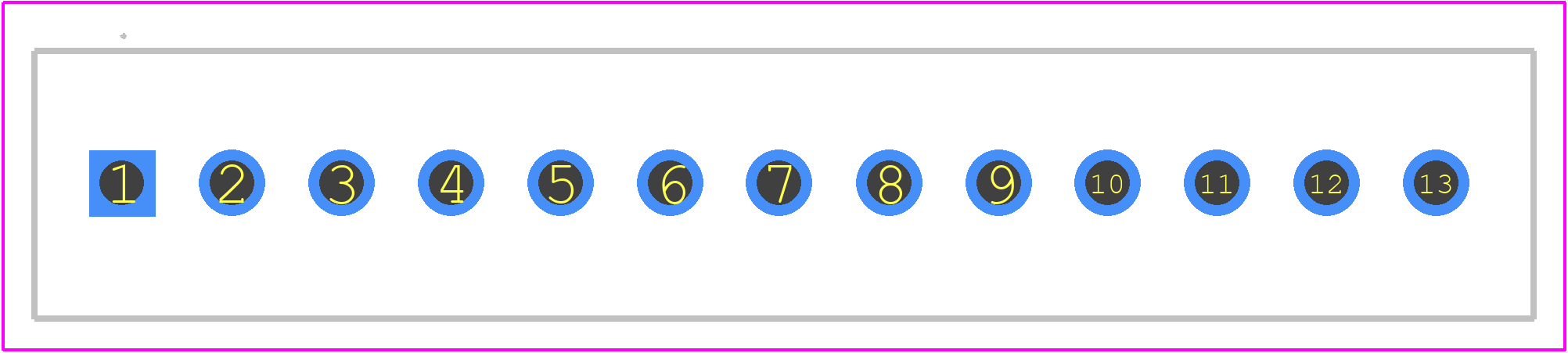

734-143 - Wago PCB footprint - Other - Other - 734-143-1
click to zoom
3D Models
734-143 - Wago - 3D model - Other - 734-143-1
click to zoom

734-143 Details

  • Manufacturer Part Number:

    734-143

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, KEMA; KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    13

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS; CCA; CSA; DNVGL; EN; IEC

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-143 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 734-143 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 734-143 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6 and DIN EN 61373.
  • Yes, the 734-143 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and water ingress.
  • The maximum operating temperature range for the 734-143 connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the 734-143 connector is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
