734-146/108-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Threaded flange; Pin spacing 3.5 mm; 16-pole

Download 734-146/108-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-146/108-000 - Wago - PCB symbol
click to zoom
PCB Footprints

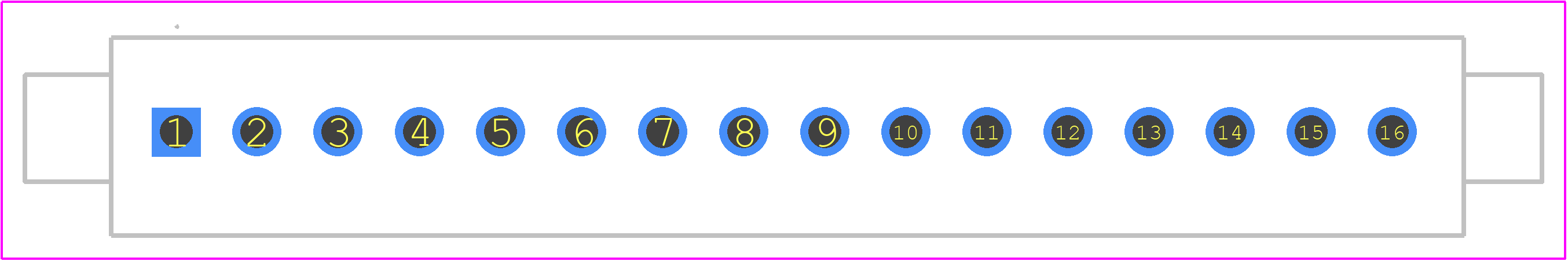

734-146/108-000 - Wago PCB footprint - Other - Other - 734-146/108-000-1
click to zoom
3D Models
734-146/108-000 - Wago - 3D model - Other - 734-146/108-000-1
click to zoom

734-146/108-000 Details

  • Manufacturer Part Number:

    734-146/108-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-146/108-000 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm, as specified in the WAGO application notes.
  • Yes, the 734-146/108-000 connector is suitable for outdoor use, as it has a IP67 rating, which provides protection against dust and water ingress.
  • Yes, the connector is designed to withstand high-vibration applications, with a vibration resistance of 10 g according to IEC 60068-2-6.
  • The maximum operating temperature range for the 734-146/108-000 connector is -40°C to 125°C, as specified in the datasheet.
  • Yes, the 734-146/108-000 connector meets the requirements of UL 1977 and CSA C22.2 No. 198.1 standards for safety and performance.
