734-146 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.5 mm; 16-pole

Download 734-146 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-146 - Wago - PCB symbol
click to zoom
PCB Footprints

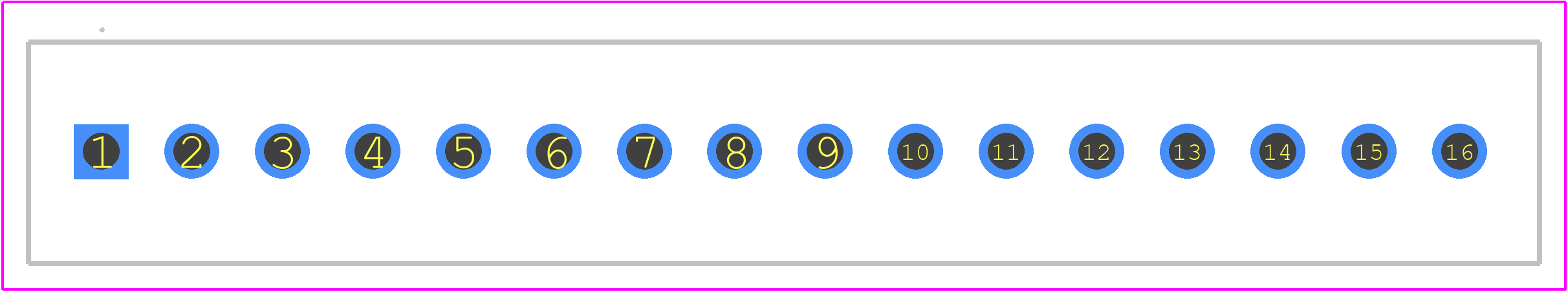

734-146 - Wago PCB footprint - Other - Other - 734-146-1
click to zoom
3D Models
734-146 - Wago - 3D model - Other - 734-146-1
click to zoom

734-146 Details

  • Manufacturer Part Number:

    734-146

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    16

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-146 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 734-146 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 734-146 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6.
  • Yes, the 734-146 connector is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
  • Yes, the 734-146 connector is suitable for use with stranded wire. However, it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range of the 734-146 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

734-146 Overview

Use the download button to access the 734-146 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-1, or try a keyword search, such as Terminals and Terminal Blocks
