734-150 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.5 mm; 20-pole

Download 734-150 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

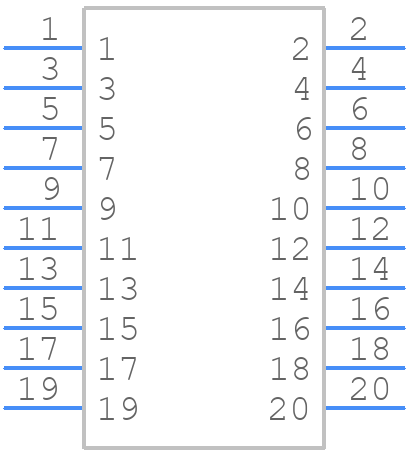

734-150 - Wago - PCB symbol
click to zoom
PCB Footprints

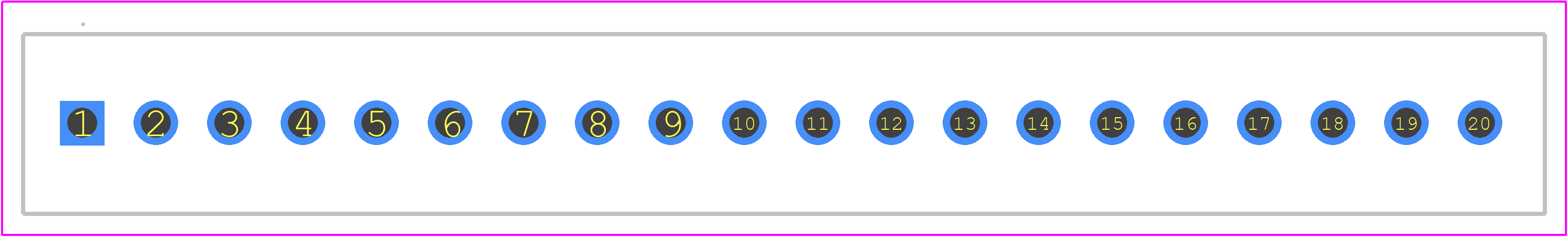

734-150 - Wago PCB footprint - Other - Other - 734-150-1
click to zoom
3D Models
734-150 - Wago - 3D model - Other - 734-150-1
click to zoom

734-150 Details

  • Manufacturer Part Number:

    734-150

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: 94V-0, POLYAMIDE66, KEMA; KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    20

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS; CCA; CSA; DNVGL; EN; IEC

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-150 Frequently Asked Questions (FAQs)

  • The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow the recommended torque to ensure reliable connections.
  • Yes, the 734-150 connector is designed to withstand high-vibration environments. It meets the vibration requirements of IEC 60068-2-6, making it suitable for use in applications with high mechanical stress.
  • The 734-150 connector has a protection rating of IP67, which means it can withstand temporary immersion in water and is suitable for outdoor use. However, it's essential to ensure proper sealing and installation to maintain the IP67 rating.
  • Yes, the 734-150 connector is designed to accept stranded wires. However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections.
  • The 734-150 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
