734-154 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.5 mm; 24-pole

Download 734-154 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

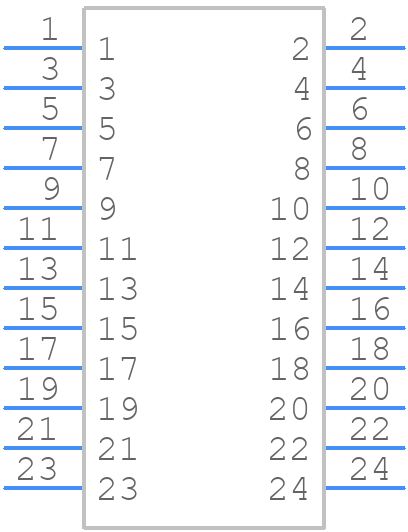

734-154 - Wago - PCB symbol
click to zoom
PCB Footprints

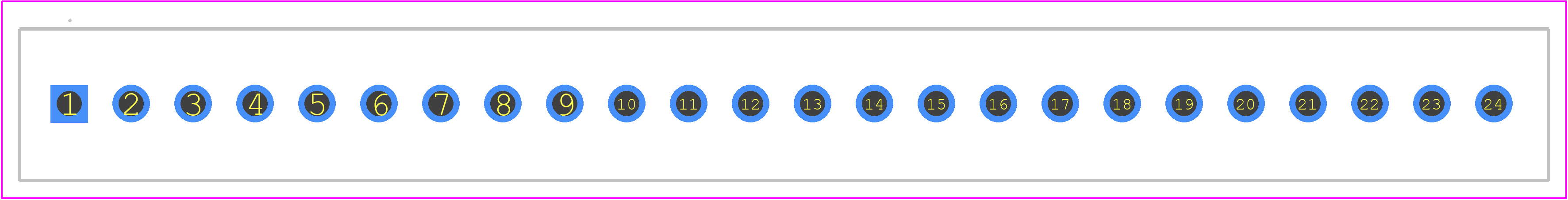

734-154 - Wago PCB footprint - Other - Other - 734-154-1
click to zoom
3D Models
734-154 - Wago - 3D model - Other - 734-154-1
click to zoom

734-154 Details

  • Manufacturer Part Number:

    734-154

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-154 Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the 734-154 connector is 0.6 Nm to 1.2 Nm (5-10 lbf-in). Over-tightening can damage the connector.
  • Yes, the 734-154 connector is designed to withstand high-vibration environments. However, it's essential to ensure proper mounting and secure wiring to prevent damage.
  • The 734-154 connector has a IP67 rating, making it suitable for outdoor use. However, it's crucial to ensure proper sealing and protection from environmental factors like moisture and UV radiation.
  • Yes, the 734-154 connector is compatible with stranded wires. However, it's essential to use the correct wire size and follow the recommended wire preparation and termination procedures.
  • The 734-154 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). Exceeding this range may affect the connector's performance and reliability.
