734-165/108-000 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Threaded flange; Pin spacing 3.5 mm; 5-pole

Download 734-165/108-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

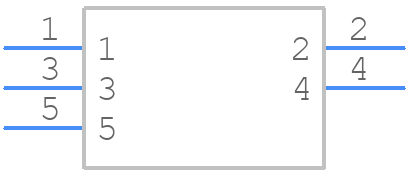

734-165/108-000 - Wago - PCB symbol
click to zoom
PCB Footprints

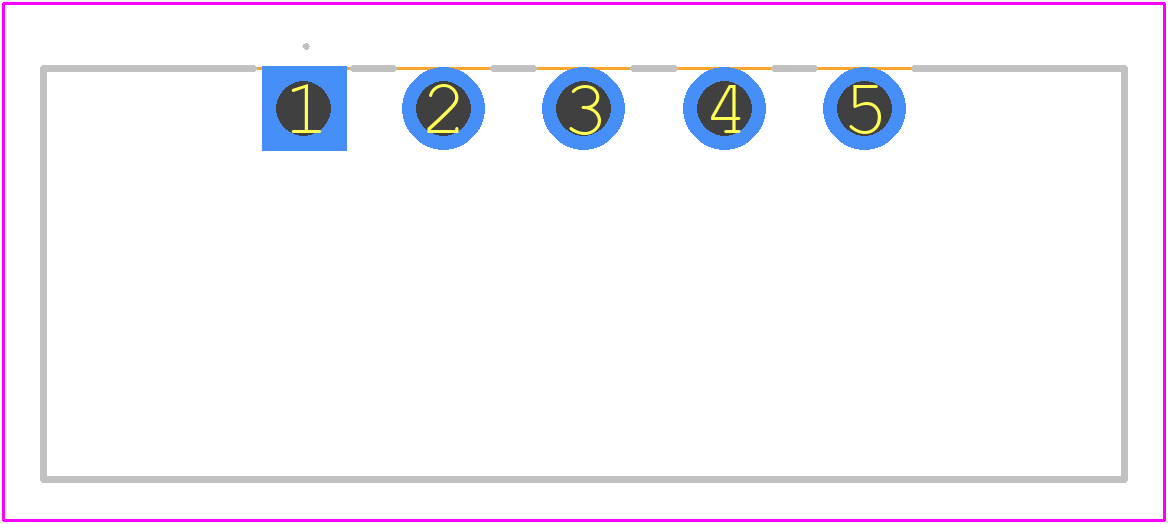

734-165/108-000 - Wago PCB footprint - Other - Other - 734-165/108-000-1
click to zoom
3D Models
734-165/108-000 - Wago - 3D model - Other - 734-165/108-000-1
click to zoom

734-165/108-000 Details

  • Manufacturer Part Number:

    734-165/108-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0; POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;EN;IEC;UL

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-165/108-000 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 0.8 Nm, as specified in the WAGO application notes.
  • Yes, the 734-165/108-000 connector is designed to withstand high vibrations and is suitable for use in applications with intense vibrations, such as in industrial machinery or transportation systems.
  • The 734-165/108-000 connector has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • Yes, the 734-165/108-000 connector is designed to accept stranded wire, but it's recommended to use a wire ferrule to ensure a secure connection.
  • The operating temperature range for the 734-165/108-000 connector is -40°C to 125°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

734-165/108-000 Overview

Use the download button to access the 734-165/108-000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-1, or try a keyword search, such as Terminals and Terminal Blocks
