The recommended torque for the screw terminals is 0.5 Nm to 1.2 Nm, depending on the wire size and type. It's essential to follow the torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 734-167 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to ensure proper installation and secure mounting to prevent damage or disconnection.
The 734-167 connector is rated IP20, which means it provides protection against solid objects larger than 12 mm, but it's not designed for outdoor use or exposure to harsh environmental conditions. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
Yes, the 734-167 connector is suitable for use with stranded wires. However, it's essential to follow the manufacturer's instructions for preparing the wire ends and ensuring proper connection to the screw terminals.
The operating temperature range for the 734-167 connector is -40°C to 125°C. This range is suitable for most industrial applications, but it's essential to consider the temperature rating when designing your system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
734-167 Overview

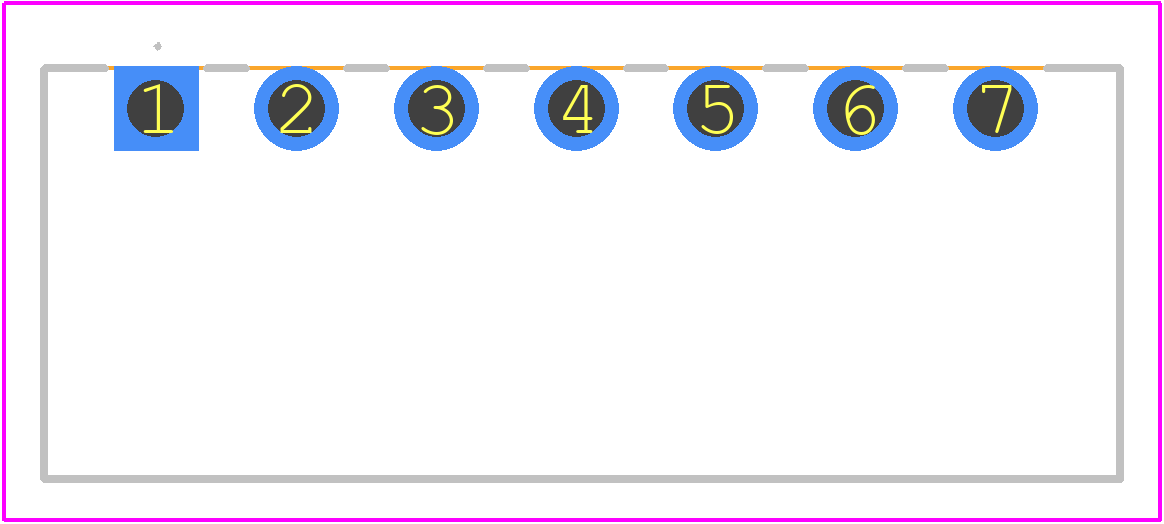

Use the download button to access the 734-167 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-1,
or try a keyword search, such as Terminals and Terminal Blocks
