The recommended torque for screw termination is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
Yes, the 734-238 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper installation and termination procedures to ensure reliable connections.
The 734-238 connector is rated IP20, which means it provides protection against solid objects larger than 12 mm and does not provide protection against water or moisture. For outdoor use, it's recommended to use a connector with a higher IP rating, such as IP67 or IP69K, or to provide additional protection using a housing or enclosure.
Yes, the 734-238 connector is designed to accept stranded wire. However, it's essential to follow the recommended wire preparation and termination procedures to ensure reliable connections. WAGO recommends using a wire ferrule to secure the stranded wire and prevent it from damaging the connector.
The operating temperature range of the 734-238 connector is -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
734-238 Overview

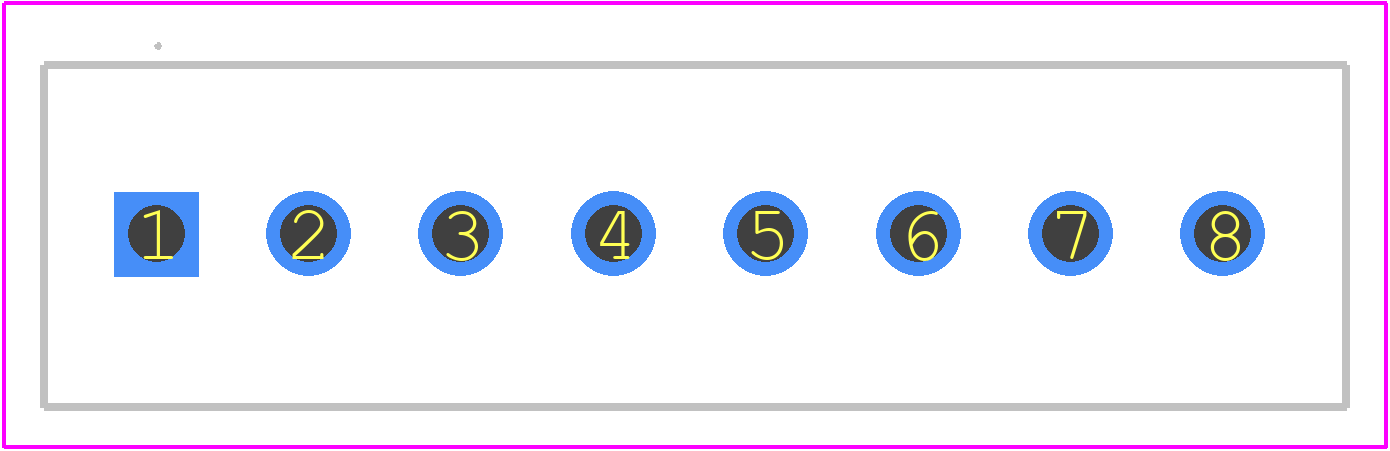

Use the download button to access the 734-238 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-2,
or try a keyword search, such as Terminals and Terminal Blocks
