734-240 - Wago

Description: THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.81 mm; 10-pole

Download 734-240 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

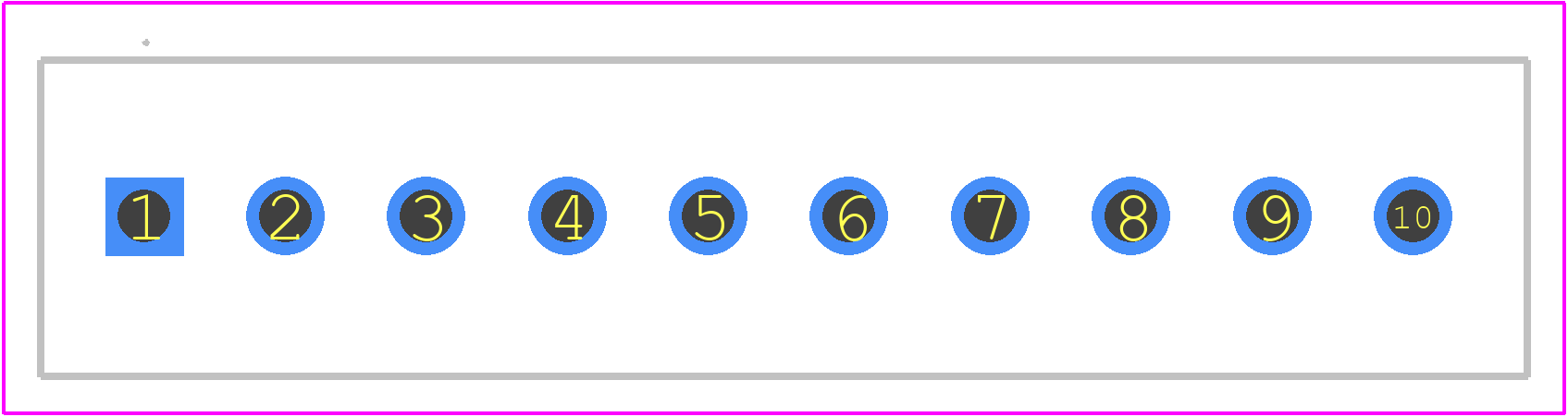

734-240 - Wago PCB footprint - Other - Other - 734-240-1
click to zoom
3D Models
734-240 - Wago  - 3D model - Other - 734-240-1
click to zoom

734-240 Details

  • Manufacturer Part Number:

    734-240

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    SAFETY APPROVAL: KEUR; LR; UL

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Packing Method:

    BOX

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CB; CSA; DNVGL; EN; IEC; KEMA

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-240 Frequently Asked Questions (FAQs)

  • The recommended torque is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) for the screws on the 734-240 connector.
  • Yes, the 734-240 connector is designed to be used in harsh environments, including those with high temperatures, humidity, and vibration. It meets the requirements of IP67 and is also resistant to corrosion.
  • Yes, the 734-240 connector is suitable for power applications up to 32 A and 1000 V. However, it's essential to ensure that the connector is used within its specified ratings and that proper safety precautions are taken.
  • Yes, the 734-240 connector is designed to be compatible with other WAGO products, including their TOPJOB S and XCOM connectors. It can also be used with other WAGO terminal blocks and connectors.
  • The operating temperature range of the 734-240 connector is -40°C to 125°C (-40°F to 257°F).
