734-412/001-000 - Wago

Description: THT double-deck male header; 1.0 x 1.0 mm solder pin; angled; 100% protected against mismating; Pin spacing 3.5 mm; 24-pole

Download 734-412/001-000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

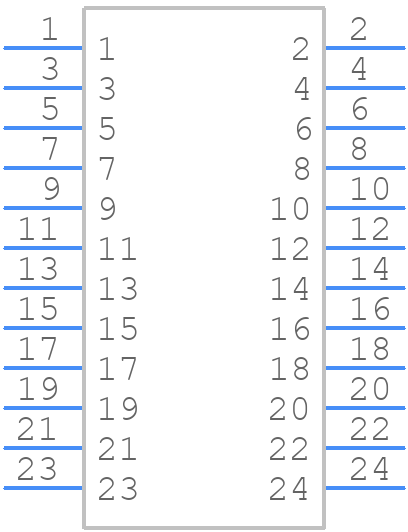

734-412/001-000 - Wago - PCB symbol
click to zoom
PCB Footprints

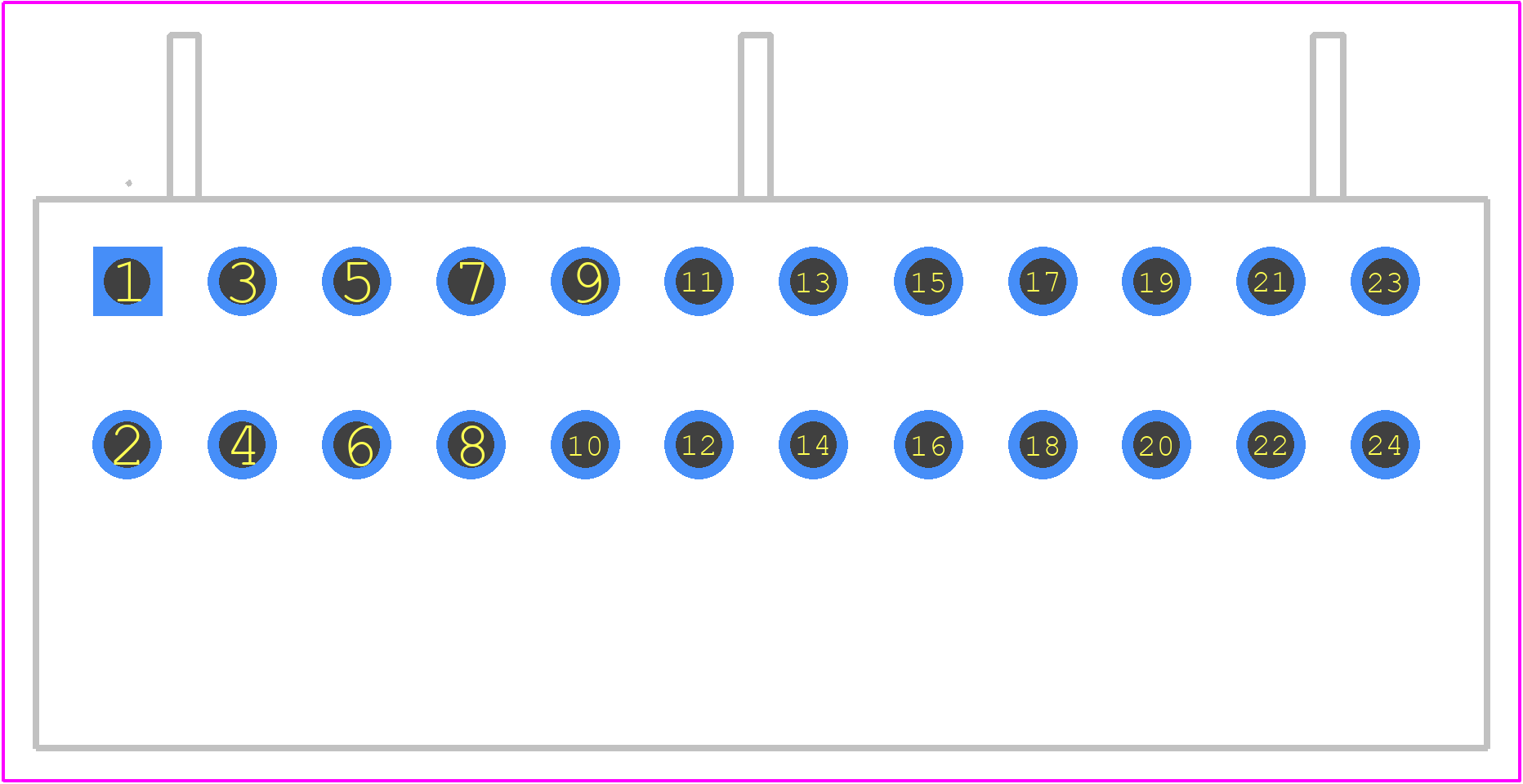

734-412/001-000 - Wago PCB footprint - Other - Other - 734-412/001-000-3
click to zoom
3D Models
734-412/001-000 - Wago - 3D model - Other - 734-412/001-000-3
click to zoom

734-412/001-000 Details

  • Manufacturer Part Number:

    734-412/001-000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    7.5

  • Additional Feature:

    STANDARD: UL94V-0, PA66: SAFETY APPROVAL: KEUR

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    ABS;CCA;CSA;EN;IEC;KEMA;UL

  • Terminal and Terminal Block Type:

    STRIP TERMINAL BLOCK

734-412/001-000 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs) to ensure reliable connections.
  • Yes, the 734-412/001-000 connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • Yes, the connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use in harsh environments.
  • The maximum wire size that can be used with this connector is 2.5 mm² (AWG 14) to ensure reliable connections and prevent damage to the connector.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to 125°C (-40°F to 257°F), making it suitable for use in high-temperature applications.
