734-464 - Wago

Description: THT female header; straight; Pin spacing 3.5 mm; 4-pole; 100% protected against mismating; 0.9 x 0.9 mm solder pin

Download 734-464 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-464 - Wago - PCB symbol
click to zoom
PCB Footprints

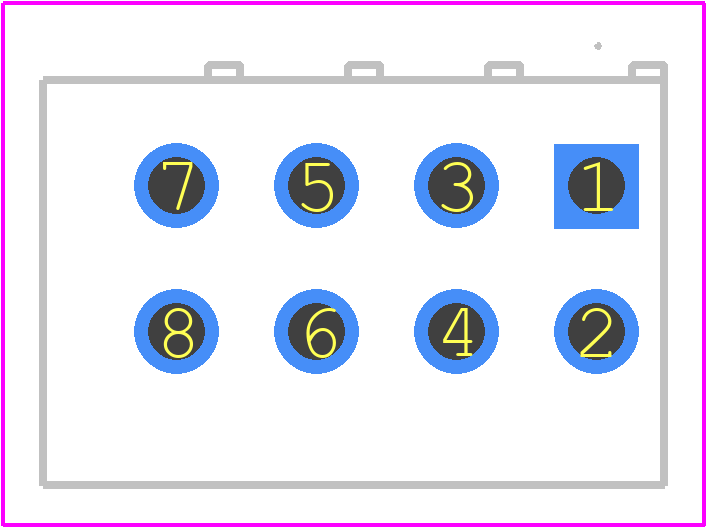

734-464 - Wago PCB footprint - Other - Other - 734-464-2
click to zoom
3D Models
734-464 - Wago - 3D model - Other - 734-464-2
click to zoom

734-464 Details

  • Manufacturer Part Number:

    734-464

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    4

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;DNV;EN;IEC;GL;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

734-464 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and wire size.
  • Yes, the 734-464 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Cat. 1 Class B.
  • Yes, the 734-464 connector is rated IP67, making it suitable for outdoor use and protected against temporary immersion in water.
  • The maximum operating temperature for the 734-464 connector is 85°C (185°F), with a minimum operating temperature of -40°C (-40°F).
  • Yes, the 734-464 connector is suitable for use with aluminum wires, but it's recommended to use a wire with a minimum conductivity of 53% IACS.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

734-464 Overview

Use the download button to access the 734-464 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-4, or try a keyword search, such as Terminals and Terminal Blocks
