734-468 - Wago

Description: THT female header; straight; Pin spacing 3.5 mm; 8-pole; 100% protected against mismating; 0.9 x 0.9 mm solder pin

Download 734-468 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
734-468 - Wago - PCB symbol
click to zoom
PCB Footprints

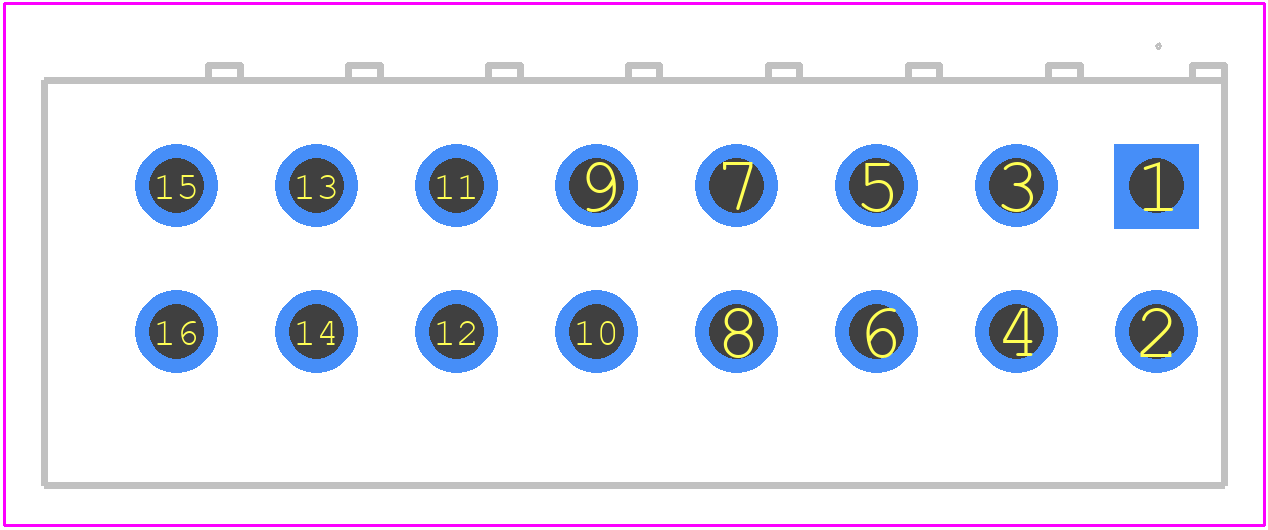

734-468 - Wago PCB footprint - Other - Other - 734-468-1
click to zoom
3D Models
734-468 - Wago - 3D model - Other - 734-468-1
click to zoom

734-468 Details

  • Manufacturer Part Number:

    734-468

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;DNV;EN;IEC;GL;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

734-468 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals on the 734-468 connector is 0.6 Nm to 0.8 Nm (5.3 in-lbs to 7.1 in-lbs).
  • Yes, the 734-468 connector is designed to withstand high-vibration environments and meets the requirements of IEC 61373 Category 1, Class B.
  • The 734-468 connector is not intended for use in explosive atmospheres and does not have any explosion-proof certifications. It is only suitable for use in non-hazardous locations.
  • The minimum wire size that can be used with the 734-468 connector is 0.5 mm² (20 AWG).
  • Yes, the 734-468 connector meets the requirements of UL 310 and is UL-recognized.
