Part Image

734-509 - Wago

Description: THT female header; straight; Pin spacing 3.81 mm; 9-pole; 100% protected against mismating; 0.9 x 0.9 mm solder pin

Download 734-509 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

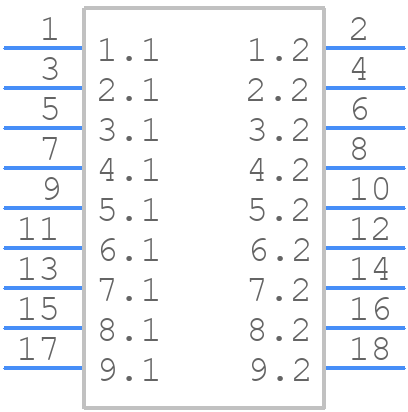

734-509 - Wago - PCB symbol
click to zoom
PCB Footprints

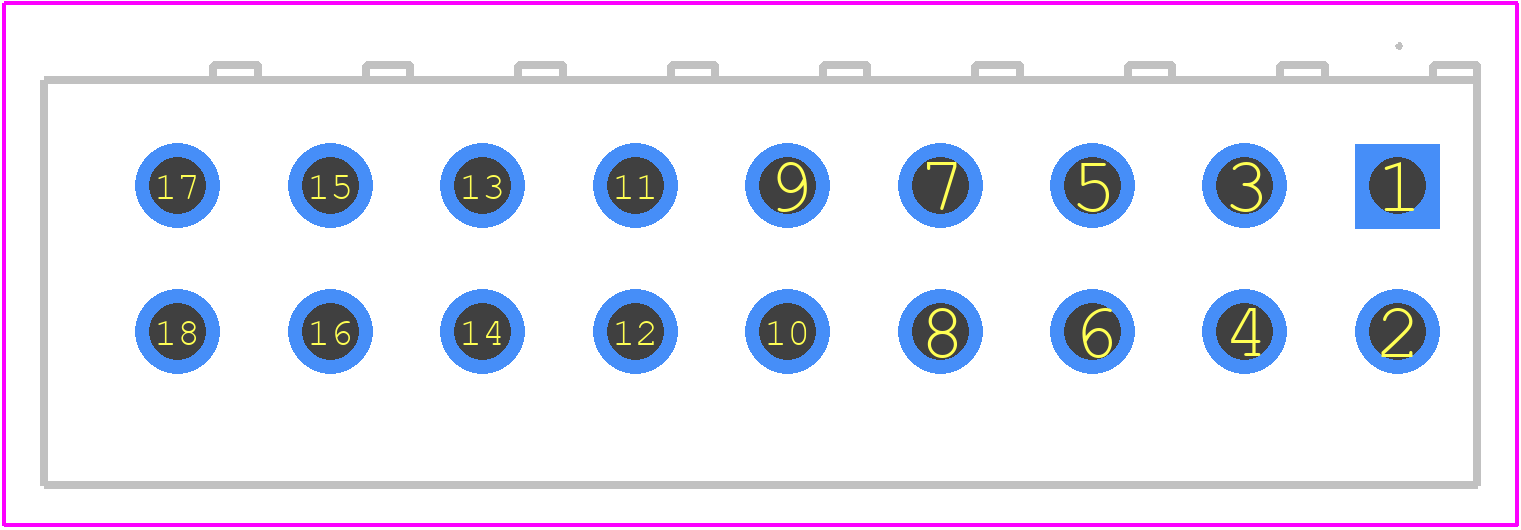

734-509 - Wago PCB footprint - Other - Other - 734-509-1
click to zoom
3D Models
734-509 - Wago - 3D model - Other - 734-509-1
click to zoom

734-509 Details

  • Manufacturer Part Number:

    734-509

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE66

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    10 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CSA;DNV;EN;IEC;GL;UL

  • Terminal Gender:

    FEMALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

734-509 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 734-509 connector is designed to withstand high-vibration environments, but it's recommended to follow WAGO's guidelines for vibration-resistant connections and to perform thorough testing in your specific application.
  • The 734-509 connector is rated for operation in temperatures ranging from -40°C to 125°C and can withstand humid environments, but it's essential to follow WAGO's guidelines for environmental considerations and to perform testing in your specific application.
  • Yes, the 734-509 connector is designed to be compatible with other WAGO products, including terminal blocks and PCB connectors, but it's recommended to verify compatibility and follow WAGO's guidelines for system integration.
  • The maximum current rating for the 734-509 connector is 41 A, but it's essential to consider the specific application, wire size, and environmental conditions to ensure safe and reliable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

734-509 Overview

Use the download button to access the 734-509 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 734-5, or try a keyword search, such as Terminals and Terminal Blocks
