Part Image

736-106 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 12-pole; CAGE CLAMP®

Download 736-106 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
736-106 - Wago - PCB symbol
click to zoom
PCB Footprints

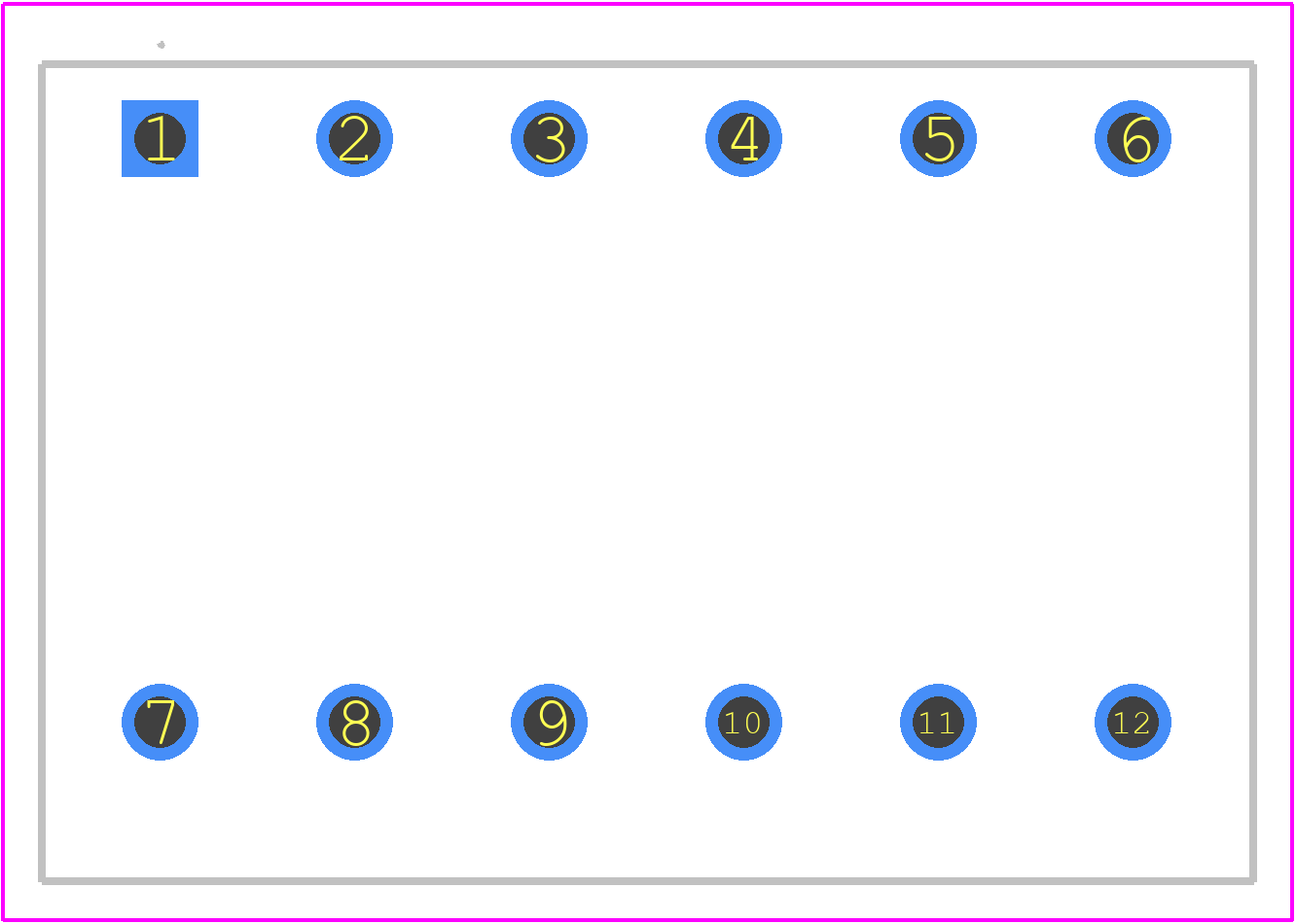

736-106 - Wago PCB footprint - Other - Other - 736-106-1
click to zoom
3D Models
736-106 - Wago - 3D model - Other - 736-106-1
click to zoom

736-106 Details

  • Manufacturer Part Number:

    736-106

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    12

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-106 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5.3 in-lbs to 10.6 in-lbs) to ensure reliable connections.
  • Yes, the 736-106 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1 Class B standard for vibration resistance.
  • Yes, the 736-106 connector is rated IP67, which means it is protected against dust and water ingress, making it suitable for outdoor use.
  • Yes, the 736-106 connector is designed to accept stranded wire with a wire size range of 0.5 mm² to 2.5 mm² (20 AWG to 14 AWG).
  • The operating temperature range of the 736-106 connector is -40°C to 125°C (-40°F to 257°F).

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

736-106 Overview

Use the download button to access the 736-106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-1, or try a keyword search, such as Terminals and Terminal Blocks
