The recommended torque for the screw terminals is 0.6 Nm to 1.2 Nm (5 in-lbs to 10 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 736-107 connector is designed to withstand high-vibration environments. WAGO's connectors are tested to meet the requirements of IEC 61373, which includes vibration testing. However, it's essential to follow proper installation and mounting guidelines to ensure the connector's performance in such applications.
The 736-107 connector has a rating of IP20, which means it provides protection against solid objects larger than 12.5 mm, but it's not suitable for outdoor use or exposure to water. If you need a connector for outdoor use, consider WAGO's connectors with higher IP ratings, such as IP67 or IP69K.
Yes, the 736-107 connector is suitable for use with stranded wire. However, it's essential to follow WAGO's guidelines for preparing the wire ends and using the correct ferrules or wire end sleeves to ensure reliable connections.
Yes, the 736-107 connector is UL certified (UL 310) and meets the requirements for use in the United States and Canada. It's essential to verify the certification and compliance with local regulations and standards for your specific application.
Trust Checks
This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
736-107 Overview

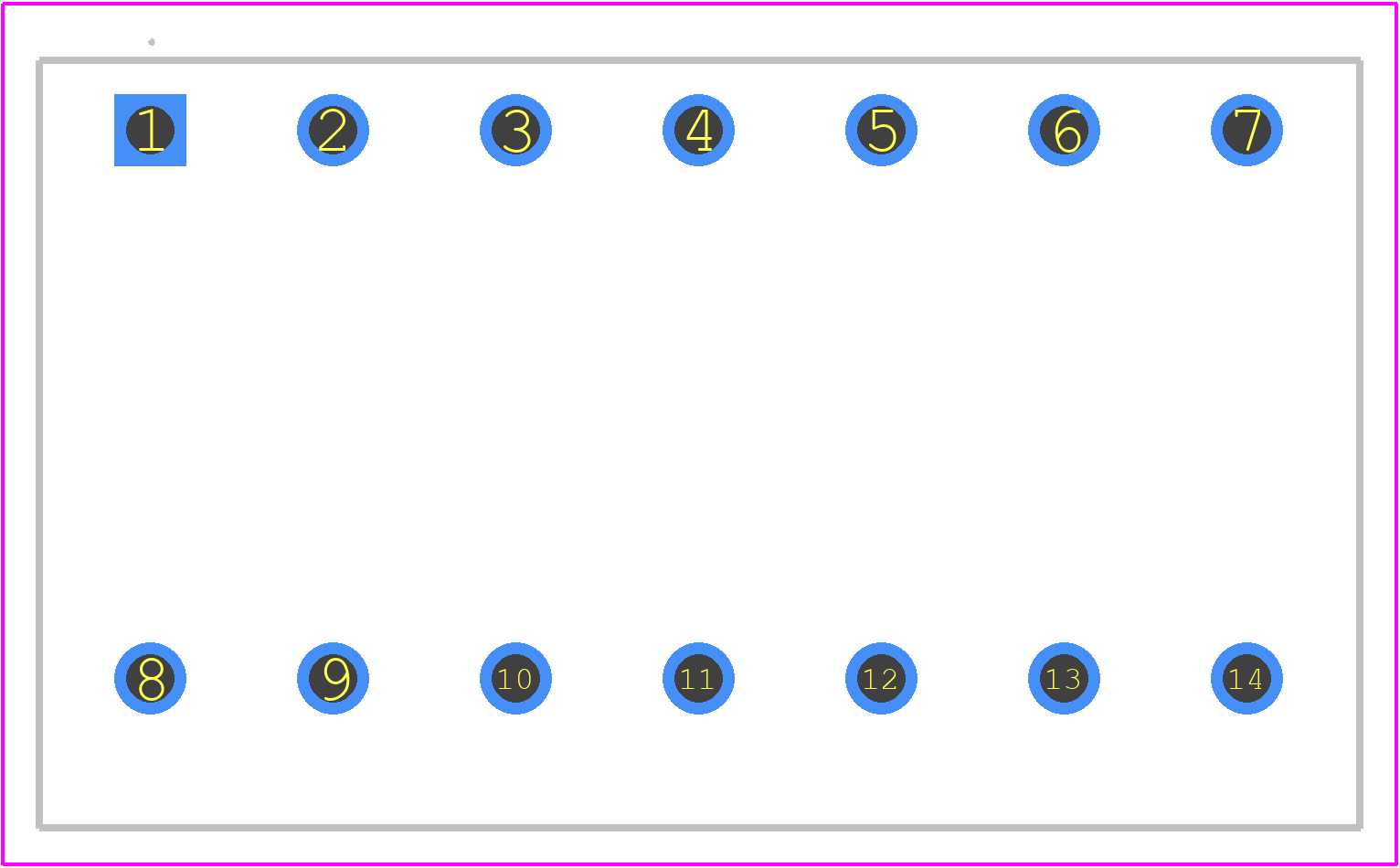

Use the download button to access the 736-107 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-1,
or try a keyword search, such as Terminals and Terminal Blocks
