736-108 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 16-pole; CAGE CLAMP®

Download 736-108 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
736-108 - Wago - PCB symbol
click to zoom
PCB Footprints

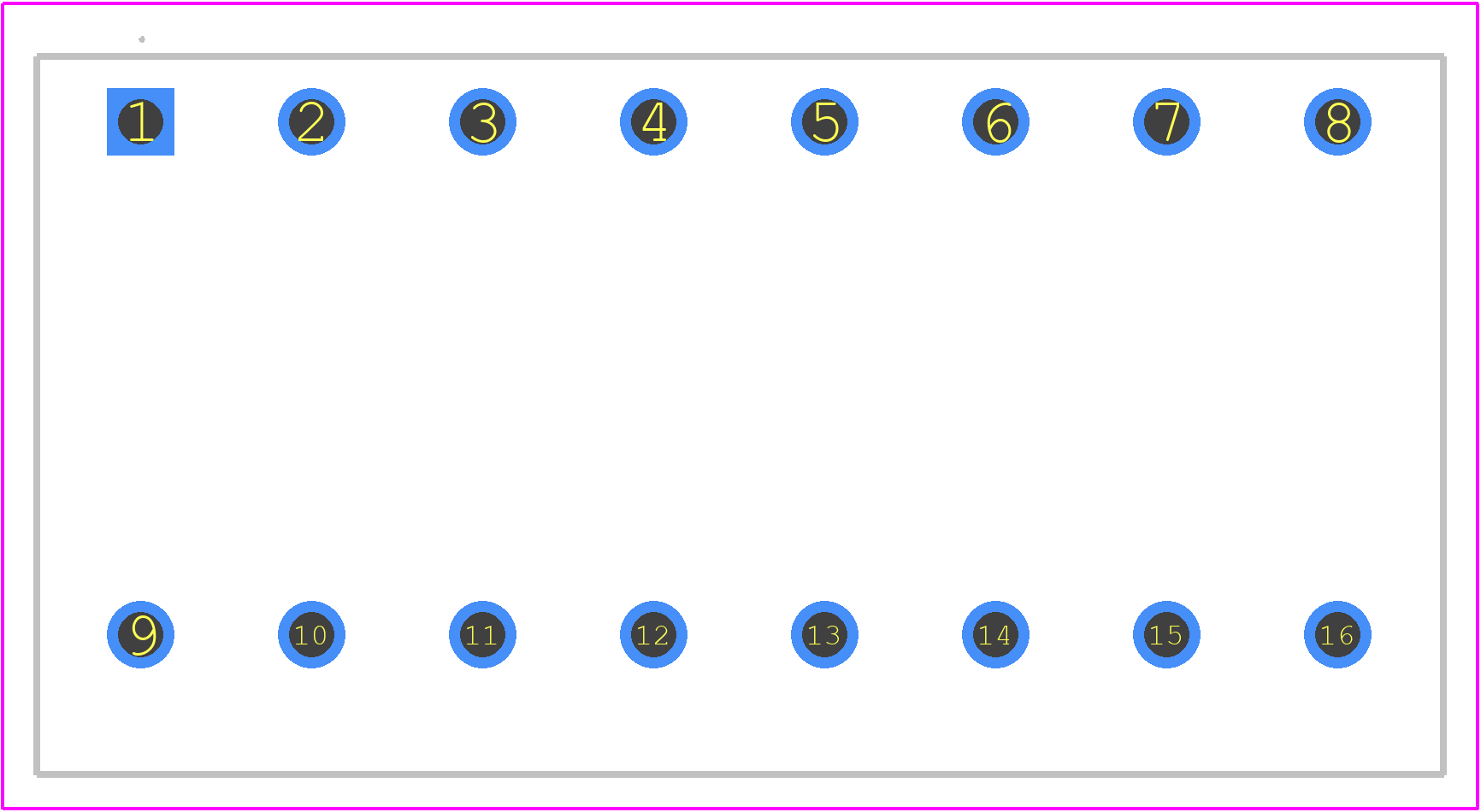

736-108 - Wago PCB footprint - Other - Other - 736-108-2
click to zoom
3D Models
736-108 - Wago - 3D model - Other - 736-108-2
click to zoom

736-108 Details

  • Manufacturer Part Number:

    736-108

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    16

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-108 Frequently Asked Questions (FAQs)

  • The recommended torque for screw terminals is 0.5 Nm to 1.5 Nm. It's essential to follow the recommended torque to ensure reliable connections and prevent damage to the connector.
  • Yes, the 736-108 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure wiring to prevent damage or disconnection.
  • The 736-108 connector has a IP67 rating, making it suitable for outdoor use. However, it's essential to ensure proper sealing and protection from environmental factors like moisture, dust, and extreme temperatures.
  • Yes, the 736-108 connector is compatible with stranded wires. However, it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The 736-108 connector has an operating temperature range of -40°C to 125°C. It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

This model has been approved by the manufacturer.
Manufacturer Approved
This model has been generated by a fully automated process.
Machine Generated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

736-108 Overview

Use the download button to access the 736-108 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 736-1, or try a keyword search, such as Terminals and Terminal Blocks
