736-112 - Wago

Description: Double-deck PCB terminal block; 2.5 mm²; Pin spacing 5 mm; 24-pole; CAGE CLAMP®; special version

Download 736-112 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

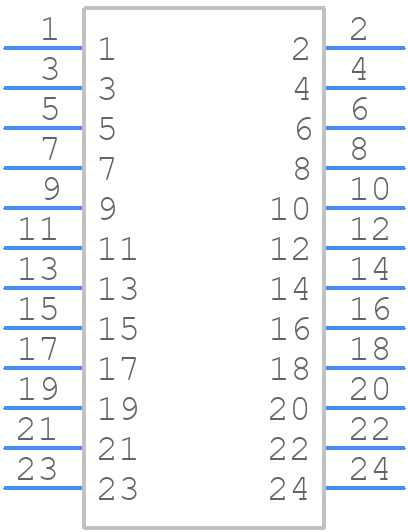

736-112 - Wago - PCB symbol
click to zoom
PCB Footprints

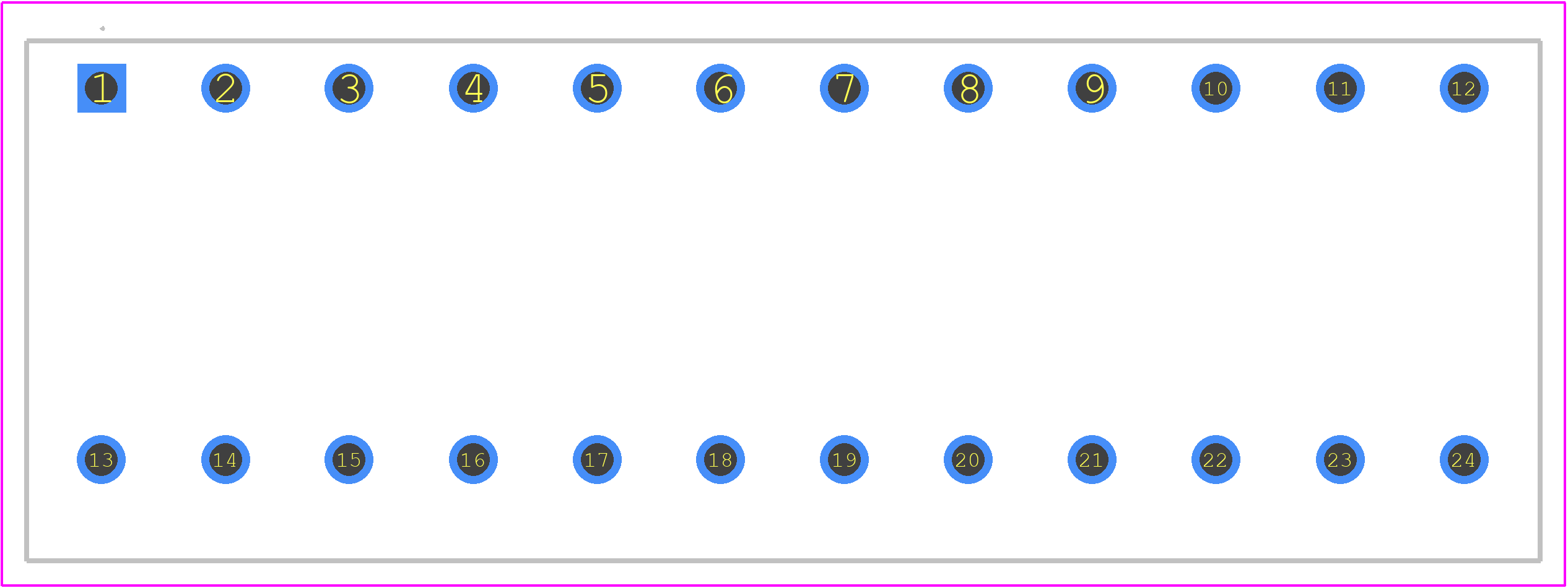

736-112 - Wago PCB footprint - Other - Other - 736-112-1
click to zoom
3D Models
736-112 - Wago - 3D model - Other - 736-112-1
click to zoom

736-112 Details

  • Manufacturer Part Number:

    736-112

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Poland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    WAGO Innovative Connections

  • YTEOL:

    6

  • Additional Feature:

    FRONT ENTRY, CAGE CLAMP

  • Fastening Method:

    SOLDER

  • Mounting Type:

    BOARD

  • Number of Decks:

    2

  • Number of Rows:

    2

  • Number of Ways:

    24

  • Rated Current:

    15 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    MODULAR TERMINAL BLOCK

  • Wire Cross Section:

    2.5 mm2

  • Wire Gauge:

    12 AWG

736-112 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw connections is 0.6 Nm to 1.2 Nm, depending on the specific application and environmental conditions.
  • Yes, the 736-112 connector is designed to withstand high-vibration environments, but it's recommended to follow WAGO's guidelines for vibration-resistant connections and to perform thorough testing in your specific application.
  • The 736-112 connector has a IP67 rating, making it suitable for outdoor use in harsh environments, but it's essential to ensure proper sealing and protection from direct sunlight, moisture, and extreme temperatures.
  • Yes, the 736-112 connector is designed to work with both solid and stranded wires, but it's recommended to use wires with a minimum strand count of 30 to ensure reliable connections.
  • The 736-112 connector has an operating temperature range of -40°C to 125°C, but it's essential to consider the specific application and environmental conditions to ensure reliable performance.
